Brand: Ingersoll

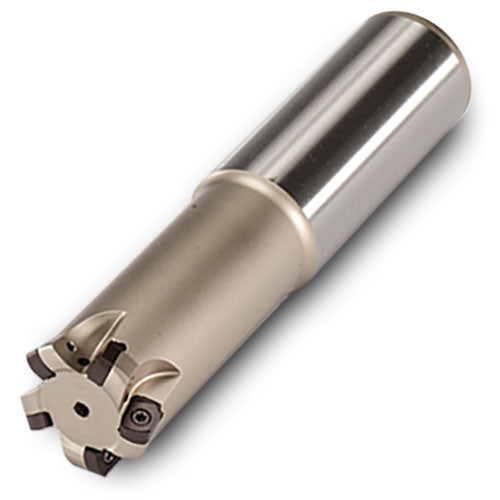

Ingersoll IC522906847 1TG1G-12027E2R04
SKU: FTS-IC522906847
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll IC522906847 1TG1G-12027E2R04Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Connection Diameter Machine Side (DCONMS) | 1-1/4" |
| Cutting Diameter (DC) | 0.841" | Usable Length (LU) | 2.569" |
| Cutting Diameter Maximum (DCX) | 1-1/4" | Corner Radius (RE) | 0.094" |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.06" | Diameter | 0" |
| Overall Length (OAL) | 5-3/4" | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 2-3/4" |
1.5 mm (.059") Max. depth of cut Three different insert edge preparations provide application flexibility. Excellent high feed performance & economy!
