Brand: Ingersoll
Ingersoll IC522906787 TG1G-30R01
SKU: FTS-IC522906787
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522906787 TG1G-30R01Full Description

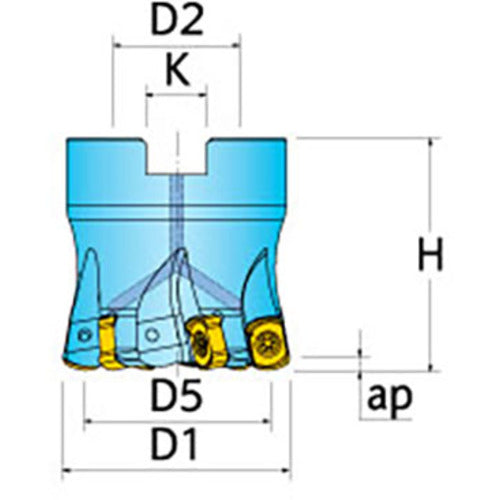

| Cutting Diameter (DC/DCX) | 3" | Overall Length (OAL) | 1-3/4" |
| Cutting Diameter (DC) | 3" | Ramping Angle Maximum (RMPX) | 0.6 Degrees |
| Cutting Diameter Maximum (DCX) | 3" | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 0.06" | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1" |
Family Description
1.5 mm (.059") Max. depth of cut 9 mm IC Insert with 4 indexes Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy!
