Brand: Ingersoll

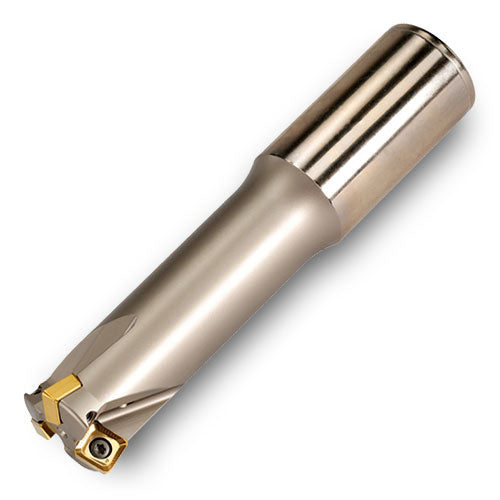

Ingersoll IC522900609 15M1P-1505386R01
SKU: FTS-IC522900609
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC522900609 15M1P-1505386R01Full Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slanted Shoulder & Chamfer | |
| Cutting Diameter (DC) | 0.673" | Connection Diameter Machine Side (DCONMS) | 1-1/2" |
| Cutting Diameter Maximum (DCX) | 1-1/2" | Usable Length (LU) | 4.766" |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Depth of Cut Maximum (APMX) | 0.088" | Measurement Type | Inch |
| Overall Length (OAL) | 8" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 5.2 Degrees | Protruding Length (LPR) | 5.34" |
Family Description
.088" Max. Depth of Cut
