Brand: Ingersoll

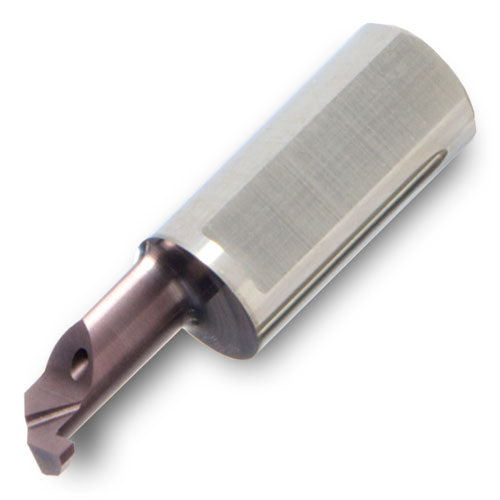

Ingersoll IC086861060 MINGR04-050050-D20 TT9030
SKU: FTS-IC086861060
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC086861060 MINGR04-050050-D20 TT9030Full Description
| Connection Diameter Machine Side (DCONMS) | 0.157" | Grade | TT9030 |
| Cutting Width (CW) | 0.02" | Minimum Bore Diameter (DMIN) | 0.079" |
| Cutting Depth Maximum (CDX) | 0.016" | Front End Width (a) | 0.071" |
| Overall Length (OAL) | 0.827" | Cutting Length | 0.24" |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Steel |
