Brand: Ingersoll

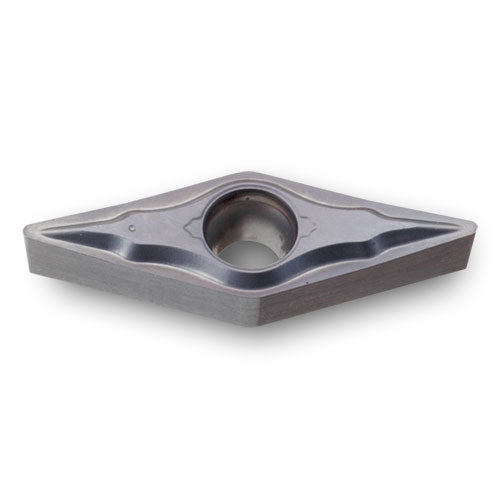

Ingersoll IC066120568 VBGT331SA TT5080
SKU: FTS-IC066120568
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC066120568 VBGT331SA TT5080Full Description
| Insert Style | VBGT | Fixing Hole Diameter (D1) | 0.173" |
| Corner Radius (RE) | 0.016" | Min D.O.C. | 0.02" |
| Insert Size | 331 | Depth of Cut Maximum (APMX) | 0.059" |
| Cutting Edge Length (L) | 0.614" | Min. Turning Feed (ft(min)) | 0.003" |
| Insert Thickness (S) | 0.187" | Max. Turning Feed (ft(max)) | 0.008" |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiAlN+TiN | Series/List # | TNGG 331-SA |
| Grade | TT5080 | Body Material | Carbide |
