Brand: Ingersoll

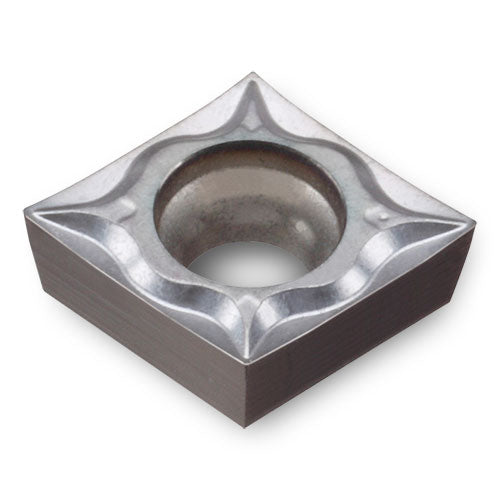

Ingersoll IC065519914 CCGT21.50.5SA TT9020
SKU: FTS-IC065519914
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC065519914 CCGT21.50.5SA TT9020Full Description
| Insert Style | CCGT | Min D.O.C. | 0.004" |
| Corner Radius (RE) | 0.008" | Depth of Cut Maximum (APMX) | 0.06" |
| Insert Size | 21.50.5 | Min. Turning Feed (ft(min)) | 0.0008" |
| Cutting Edge Length (L) | 0.254" | Max. Turning Feed (ft(max)) | 0.006" |
| Insert Thickness (S) | 0.094" | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4" | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Coating | TiCN | Series/List # | DNMG 21.50.5-SA |
| Grade | TT9020 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11" |
