Brand: Ingersoll

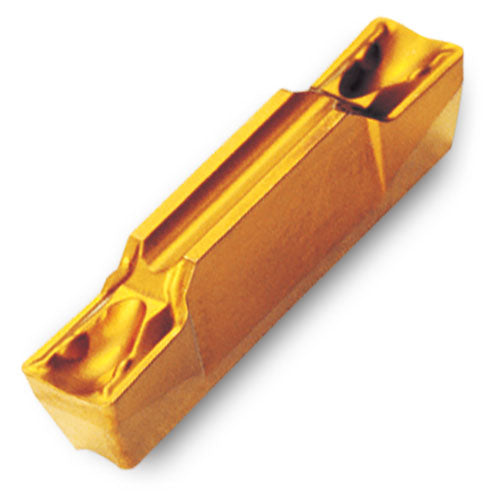

Ingersoll IC046402567 TDXU2E-0.3 TT9080
SKU: FTS-IC046402567
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC046402567 TDXU2E-0.3 TT9080Full Description
| Cutting Width (CW) | 0.079" | Grade | TT9080 |
| Corner Radius (RE) | 0.012" | Application | | Countersinking | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Cutting Depth Maximum (CDX) | 0.748" | Insert Seat Size Code (SSC) | 2 |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Insert Thickness (S) | 0.185" | Min. Grooving Feed (fg(min)) | 0.0012" |
| Insert Length (INSL) | 0.79" | Body Material | Carbide |
| Coating | TiAlN+TiN |
