Brand: Ingersoll

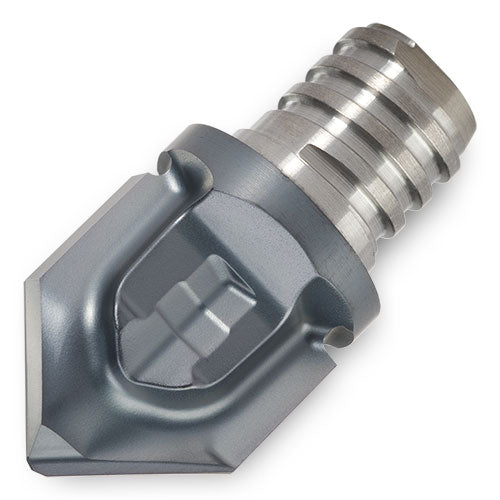

Ingersoll IC045873249 45P16015TRRA60 IN2005
SKU: FTS-IC045873249
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC045873249 45P16015TRRA60 IN2005Full Description
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IN2005 |
| Cutting Diameter (DC) | 0.059" | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.63" | Drill Protruding Length | 0.17" |
| Depth of Cut Maximum (APMX) | 0.173" | Body Material | Steel |
| Functional Length (LF) | 0.783" |
Family Description
144° 120° 100° 90° 80° & 60° Included Angle options 80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°) 2 Flute
