Brand: Ingersoll

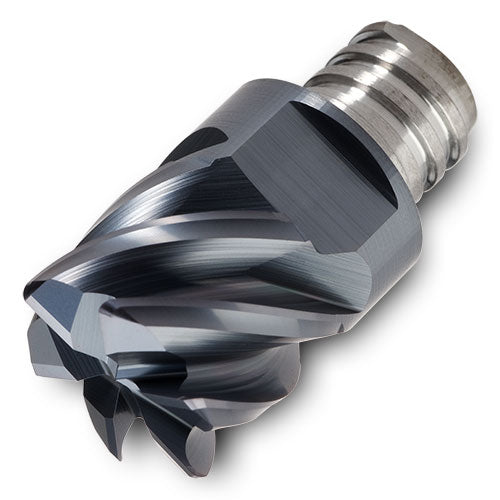

Ingersoll IC045622630 49D-1086TURB03 IN2005
SKU: FTS-IC045622630
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
IC045622630 49D-1086TURB03 IN2005Full Description
| Application | || Ext. Grooving | Int. Grooving | | | Overall Length (OAL) | 1.45" |
| Cutting Diameter (DC) | 1" | Grade | IN2005 |
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Non Ferrous Metals |Hi Temp Alloys | | Coating | TiAlN |
| Corner Radius (RE) | 0.031 R | Corner Chamfer Width (CHW) | 0.031 R |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.88" | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.45" | Ramping Angle Maximum (RMPX) | 3 |
| Flute Helix Angle (FHA) | 30 | Body Material | Steel |
