Brand: Micro 100

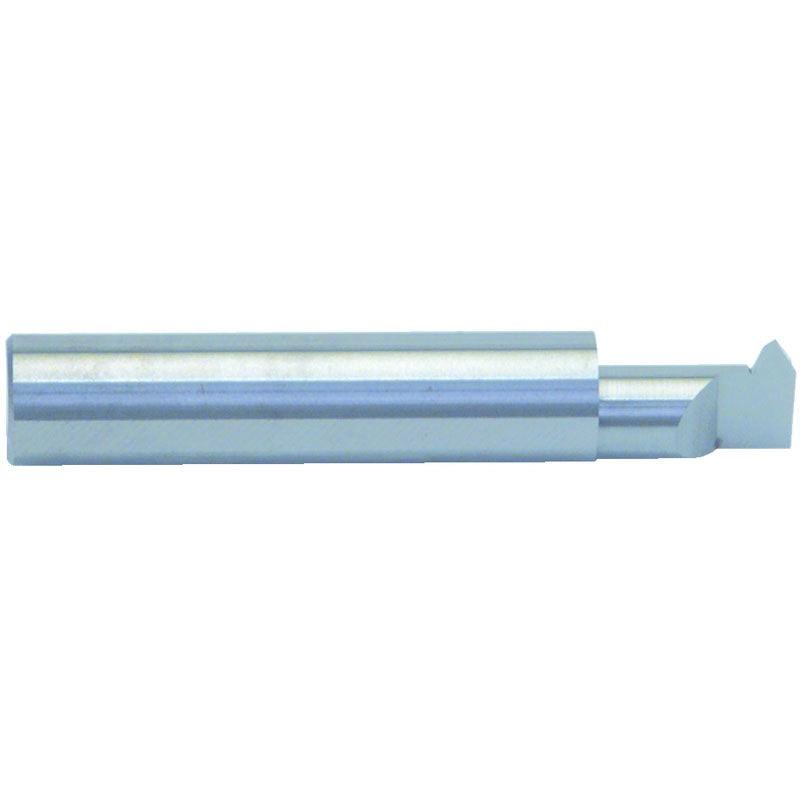

Micro 100 GE45IAT40016 .0450 Projection-29° - RH - .200" Min Thread - Internal Threading Tool
SKU: FTS-GE45IAT40016
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Micro 100 IAT-400–16 .0450 Projection-29° - RH - .200" Min Thread - Internal Threading ToolFull Description
| Threads per Inch Maximum (TPIX) | 16 | Connection Diameter Machine Side (DCONMS) | 1/4" |
| Overhang Minimum (OHN) | 0.4" | Thread Angle | 29 Degrees |
| Functional Width (WF) | 0.045" | Overall Length (OAL) | 2-1/2" |
| Minimum Thread Diameter | 0.2" | Tool Type | Internal Acme Threading Tool |
| Cutting Direction (HAND) | Right Hand | Internal/External | Internal |
• Solid Carbide Internal Acme Threading Tools • 29° Included Angle
