Brand: DESTACO

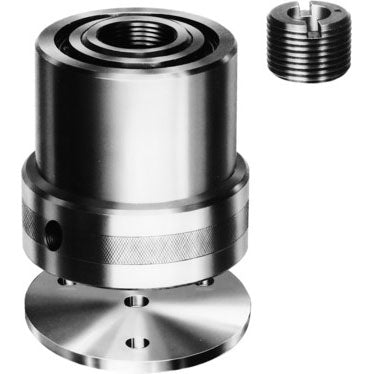

DESTACO 020-013-031DE THRU-HOLE HYDRAULIC RAM
SKU: DE-STA-CO-020-013-031DE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 020-013-031DE THRU-HOLE HYDRAULIC RAM offers superior clamping forces with its larger piston diameter and hardened steel piston and rod. By inserting a rod through the hollow piston, this single-acting cylinder can be easily configured for either pushing or pulling depending on the orientation of the ram. With a maximum operating pressure of 3000 PSI and a force of 12,066 lb, this product is a powerful and reliable manual option for hydraulic work holding. Get ready for improved productivity and efficiency with this thru-hole hydraulic ram!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 020-013-031DE THRU-HOLE HYDRAULIC RAM
By inserting a rod through the hollow piston, these cylinders can be used to push or pull depending on the orientation of the ram.
- Larger piston diameter for greater clamping forces
- Hardened steel piston and rod
- Single-acting for simple plumbing
- Optional threaded inserts
- Optional mounting plate(permits mounting ram with a single cap screw)
Force (lb) | 12,066 |
Stroke (in) | 0.630 |
Operating Pressure (PSI) | 3000 |
Port Size | SAE #4 |
Mounting | Flange |
Product Type | Thru-Hole Hydraulic Ram |
Oil Displacement (in³) | 2.510 |
Thru-Hole for Rod/Bolt Diameter (in) | 0.63 |
Product Series Description | Manual Power Source |
Product Function | Clamping |
Product Family | Hydraulic Clamping |
Product Group | hydraulic work holding |
