Brand: DESTACO

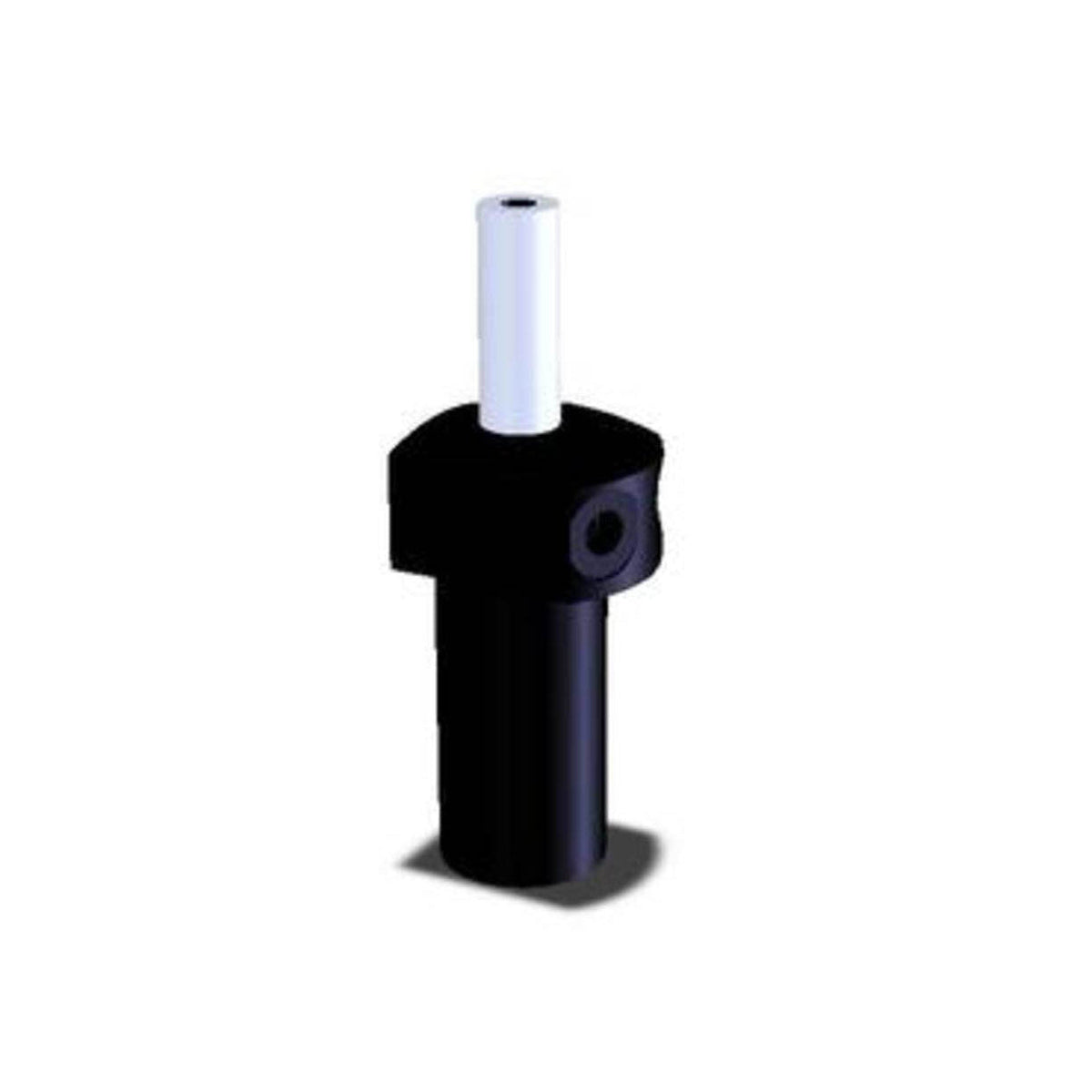

DESTACO 030-1-S-475-R HYDRAULIC SWING PULL CLAMP
SKU: DE-STA-CO-030-1-S-475-R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 030-1-S-475-R HYDRAULIC SWING PULL CLAMP, 475LB. Obsolete or soon to be obsolete product. This item is subject to stock on hand, and we will not be replenishing current inventory on these items. Please call for pricing and stock availability.
The DESTACO 030-1-S-475-R HYDRAULIC SWING PULL CLAMP offers a superior and cost-effective option for hydraulic threaded body swing clamps. With impressive features such as advanced seals and wipers, a triple track piston rod design, and a hardened and hard chrome plated piston rod, this clamp is built for long cycle life and can handle 5,000 PSI operation. The metal treated body also guarantees superior wear and corrosion resistance. It is designed with an interchangeable MRO design and has a force of 475 lbs, stroke of 0.650 in, and operating pressure of 5000 PSI. Not to mention, the single-acting mechanism and right-hand swing direction make it easy to operate and adjust for your specific needs. Don't miss out on this top-of-the-line hydraulic workholding product that will enhance your clamping capabilities.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 030-1-S-475-R HYDRAULIC SWING PULL CLAMP
SELECT hydraulic threaded body swing clamps are high quality and cost-effective alternatives to competitive brands.
- Right-hand swing clockwise)
- Advanced seals and wipers utilize a special, highly wear-resistant construction for long cycle life and 5,000 PSI operation
- Triple track piston rod design for field adjustable swing direction
- Hardened and hard chrome plated piston rod for increased strength and wear resistance
- Advanced metal treated body for superior wear and corrosion resistance
- MRO interchange design
Force (lb) | 475 |
Stroke (in) | 0.650 |
Operating Pressure (PSI) | 5000 |
Port Size | SAE #2 |
Mounting | Threaded Body |
Operating Method | Single-Acting |
Product Type | Swing/Pull Clamps |
Swing Direction | RH |
Vertical clamp stroke (mm) | 5.3 |
Vertical clamp stroke (in) | 0.21 |
Product Series Description | Manual Power Source |
Product Function | Clamping |
Product Family | Hydraulic Clamping |
Product Group | hydraulic workholding |
