Brand: DESTACO

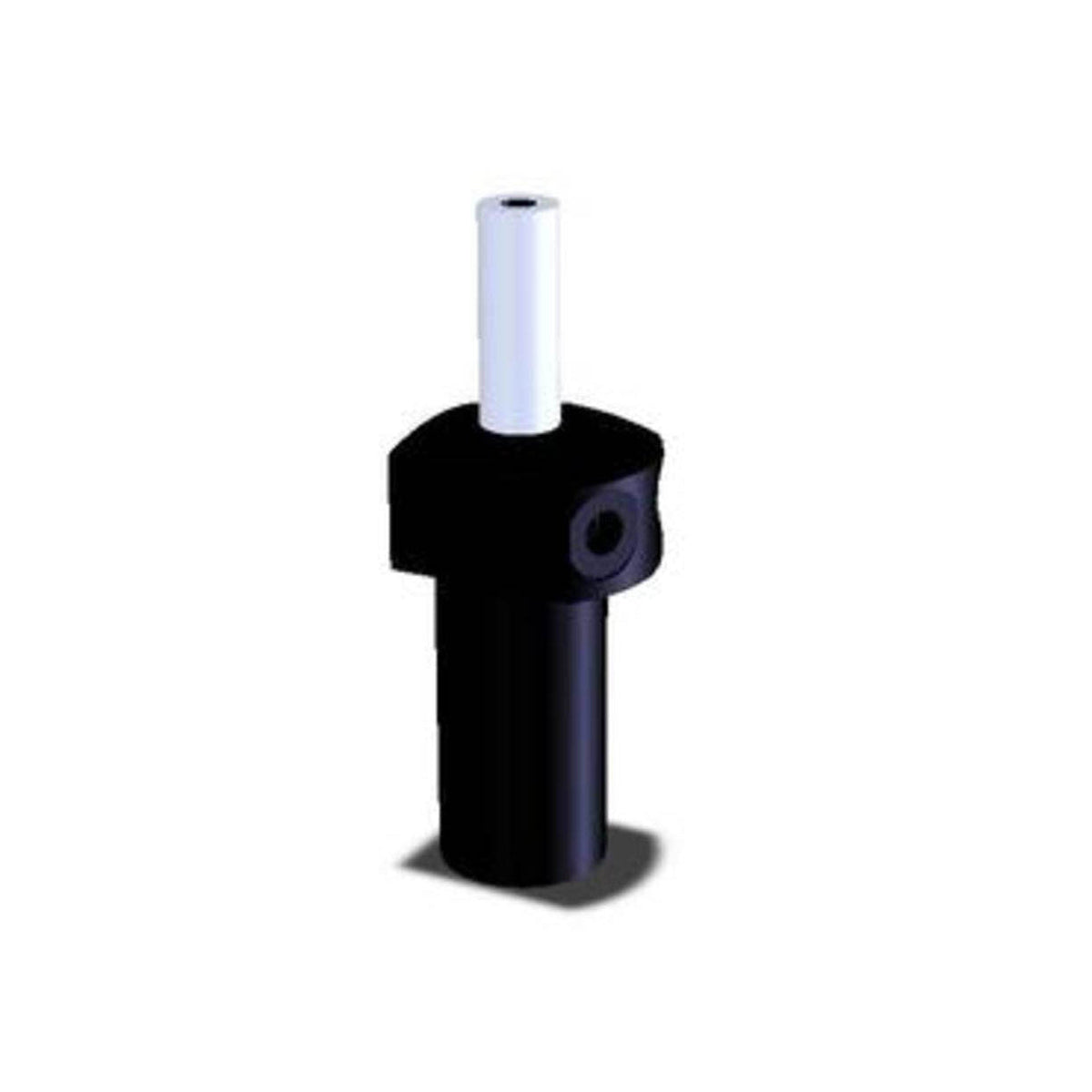

DESTACO 030-1-D-1100-R HYDRAULIC SWING
SKU: DE-STA-CO-030-1-D-1100-R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 030-1-D-1100-R HYDRAULIC SWING, RH SWING, 1100LB. Obsolete or soon to be obsolete product. This item is subject to stock on hand, and we will not be replenishing the current inventory on these items. Please call for pricing and stock availability.
DESTACO 030-1-D-1100-R HYDRAULIC SWING SELECT hydraulic threaded body swing clamps are a top choice for high quality, cost-effective alternatives to other brands. The right-hand swing (clockwise) design features advanced seals and wipers with a special, highly wear-resistant construction for a long cycle life and operation up to 5,000 PSI. The triple track piston rod allows for field adjustable swing direction, while the hardened and hard chrome plated piston rod provides increased strength and wear resistance. With an advanced metal treated body, this product offers superior wear and corrosion resistance in harsh environments. Designed for MRO interchangeability, this hydraulic swing clamp has a force of 1,100 lbs, a stroke of 0.890 inches, and operates at 5000 PSI. The SAE #4 port size and threaded body mounting make for easy installation. This double-acting swing clamp is a must-have for all your clamping needs in the hydraulic work.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 030-1-D-1100-R HYDRAULIC SWING
SELECT hydraulic threaded body swing clamps are high quality and cost-effective alternatives to competitive brands.
- Right-hand swing (clockwise)
- Advanced seals and wipers utilize a special, highly wear-resistant construction for long cycle life and 5,000 PSI operation
- Triple track piston rod design for field adjustable swing direction
- Hardened and hard chrome plated piston rod for increased strength and wear resistance
- Advanced metal treated body for superior wear and corrosion resistance
- MRO interchange design
Force (lb) | 1,100 |
Stroke (in) | 0.890 |
Operating Pressure (PSI) | 5000 |
Port Size | SAE #4 |
Mounting | Threaded Body |
Operating Method | Double-Acting |
Product Type | Swing/Pull Clamps |
Swing Direction | RH |
Vertical clamp stroke (mm) | 9.9 |
Vertical clamp stroke (in) | 0.39 |
Product Series Description | Manual Power Source |
Product Function | Clamping |
Product Family | Hydraulic Clamping |
Product Group | hydraulic work holding |
