Brand: Iscar

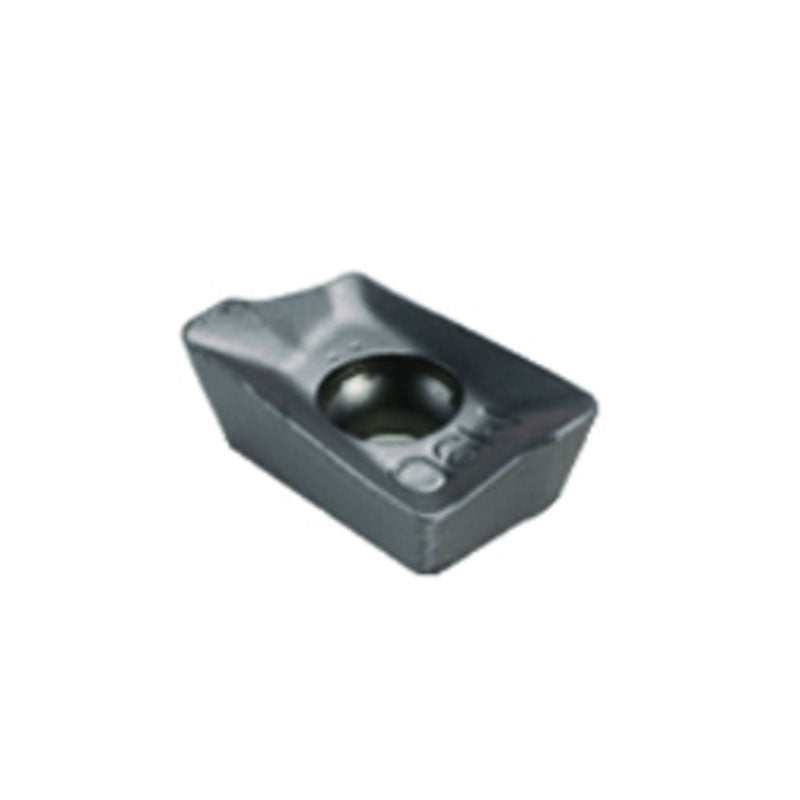

Iscar EH5602492 HM90 APKT 1003PDR IC950
SKU: FTS-EH5602492
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5602492 HM90 APKT 1003PDR IC950Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Cutting Edge Length (L) | 0.451" | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.451" | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0315" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Depth of Cut Maximum (APMX) | 0.315" | Cutting Edge Effective Length (LE) | 0.404" |
| Insert Width (W1) | 0.266" | Measurement Type | Inch |
| Insert Thickness (S) | 0.139" | Body Material | Carbide |
| Grade | IC950 |
Family Description
HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications.
For inserts with corner radii larger than .059", the cutter body should be modified. For chip former details Click on "More info"
