Brand: Iscar

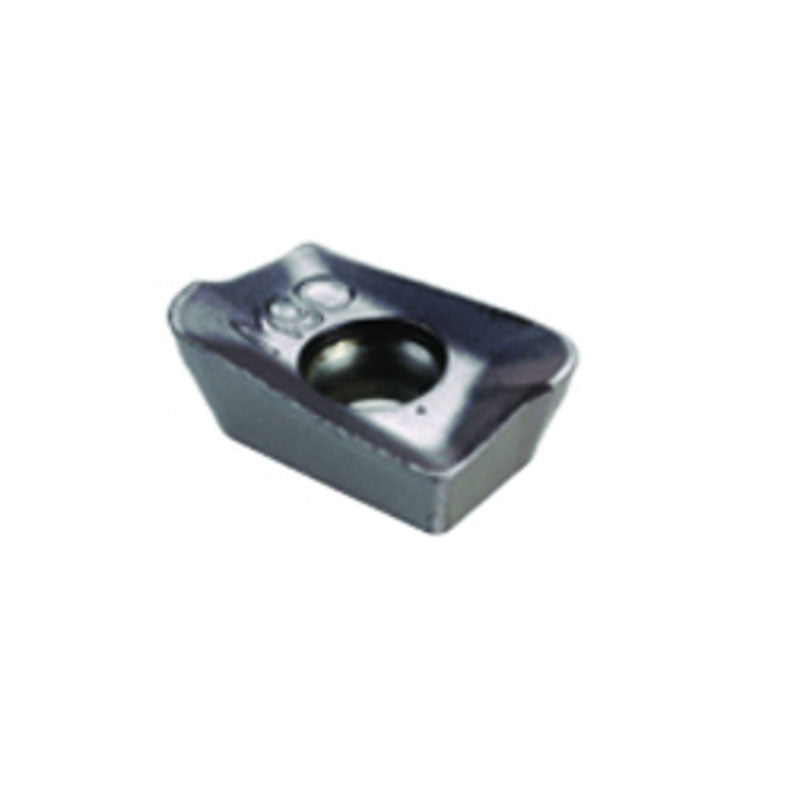

Iscar EH5603832 HM90 APKT 100316PDR IC928
SKU: FTS-EH5603832
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603832 HM90 APKT 100316PDR IC928Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC928 |
| Application | | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.451" | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.451" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.266" | Cutting Edge Effective Length (LE) | 0.405" |
| Insert Thickness (S) | 0.139" | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Family Description
HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications.
For inserts with corner radii larger than .059", the cutter body should be modified. For chip former details Click on "More info"
