Brand: Iscar

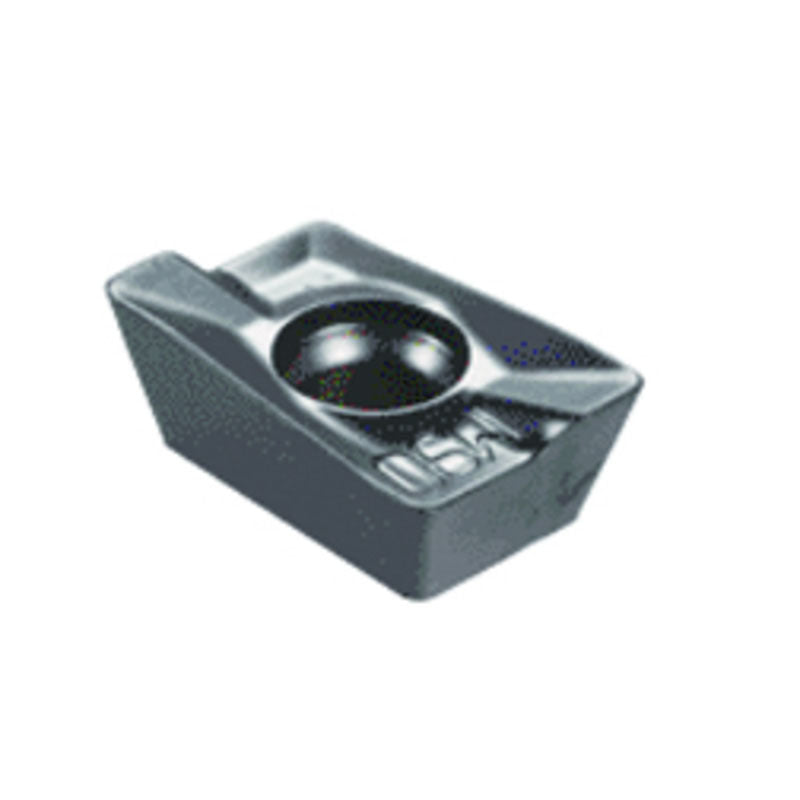

Iscar EH5602497 HM90 ADKT 1505PDR IC950
SKU: FTS-EH5602497
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5602497 HM90 ADKT 1505PDR IC950Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Cutting Edge Length (L) | 0.637" | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.637" | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0315" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Depth of Cut Maximum (APMX) | 0.472" | Cutting Edge Effective Length (LE) | 0.571" |
| Insert Width (W1) | 0.38" | Measurement Type | Inch |
| Insert Thickness (S) | 0.23" | Body Material | Carbide |
| Grade | IC950 |
Family Description
HELI2000 milling inserts with various corner radii for general use.
For inserts with corner radii larger than .079", the cutter body and seats should be modified Inserts with corner radii larger than .031" should be used on ADK & SM tools only on the face of the cutter.
