Brand: Iscar

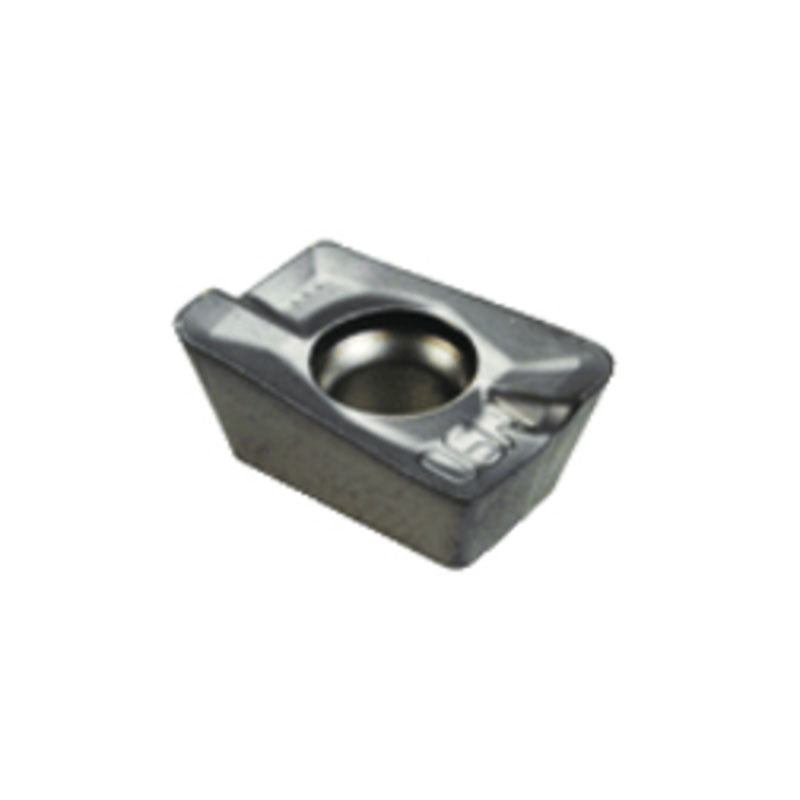

Iscar EH5603474 HM90 ADKT 150516-PDR IC908
SKU: FTS-EH5603474
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603474 HM90 ADKT 150516-PDR IC908Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Grade | IC908 |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.614" | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.614" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.38" | Cutting Edge Effective Length (LE) | 0.559" |
| Insert Thickness (S) | 0.233" | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Family Description
HELI2000 milling inserts with various corner radii for general use.
For inserts with corner radii larger than .079", the cutter body and seats should be modified Inserts with corner radii larger than .031" should be used on ADK & SM tools only on the face of the cutter.
