Brand: Iscar

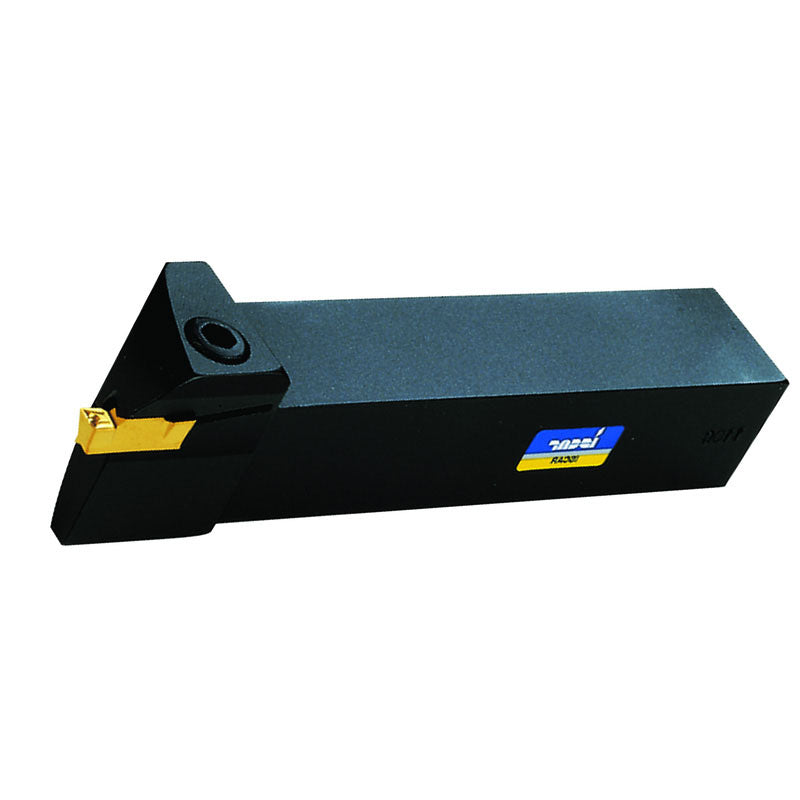

Iscar EH2500603 HGHL 12.7-16-3T6
SKU: FTS-EH2500603
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2500603 HGHL 12.7-16-3T6Full Description
| Shank Width (B) | 1/2" | Overall Length (OAL) | 5" |
| Shank Height (H) | 1/2" | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 0.236" | Head Length (LH) | 3/4" |
| Cutting Width (CW) | 0.118" | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 0.98" | Functional Width (WF) | 0.46" |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.63" | Measurement Type | Inch |
Family Description
Integral holders for face grooving and turning
For insert clamping instructions and for widening limitations, click on "More Info" HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders
