Brand: Iscar

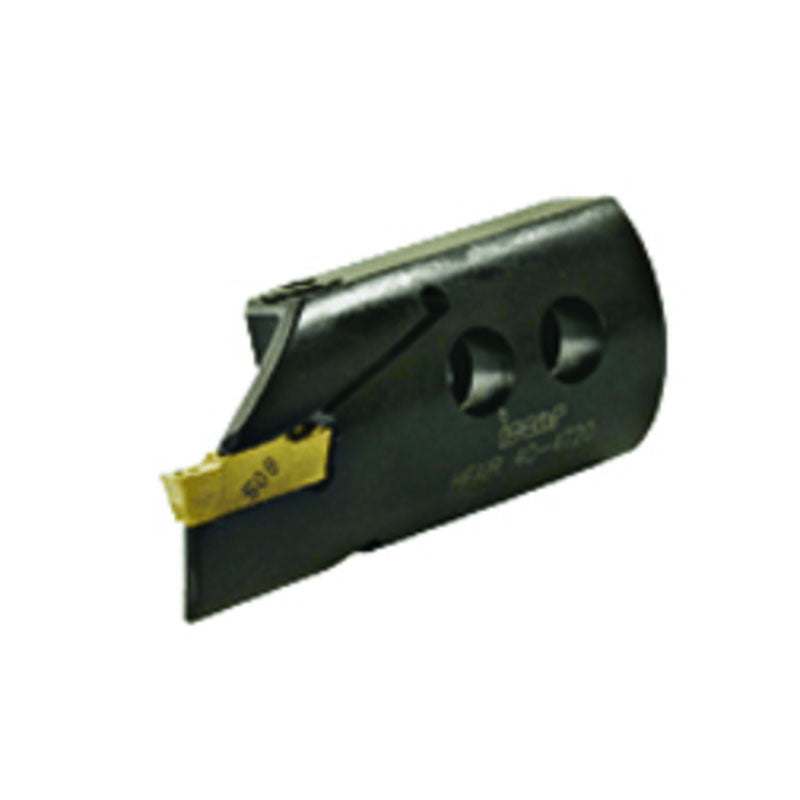

Iscar EH2550073 HFAIR 60-4T25
SKU: FTS-EH2550073
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2550073 HFAIR 60-4T25Full Description
| Cutting Depth Maximum (CDX) | 0.984" | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.157" | Head Length (LH) | 1.299" |
| Cutting Direction (HAND) | Right Hand | Tool Type | Face Turning & grooving Tools |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.95" | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 2.36" | Functional Width (WF) | 0.602" |
| Overall Length (OAL) | 2.638" | Measurement Type | Inch |
Family Description
Adapters for internal face grooving and turning. Dmin 1.34".
For insert clamping instructions, click on "More Info"
