Brand: Iscar

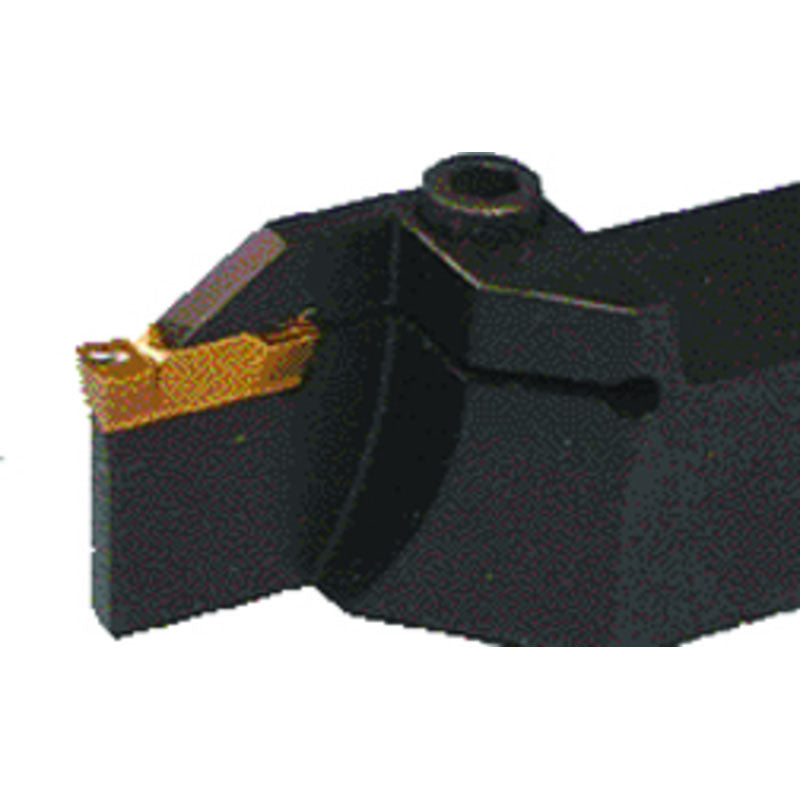

Iscar EH2500553 HELIR 19-4T12
SKU: FTS-EH2500553
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2500553 HELIR 19-4T12Full Description
| Cutting Width Minimum (CWN) | 0.157" | Overall Length (OAL) | 5-1/2" |
| Cutting Width Maximum (CWX) | 0.187" | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.47" | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 3/4" | Body Material | Steel |
| Functional Width (WF) | 0.69" | Tool Type | Face Turning & grooving Tools |
| Head Length (LH) | 1.1" | Measurement Type | Inch |
Family Description
HELI-GRIP external holders for turning, grooving & parting
For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
