Brand: Iscar

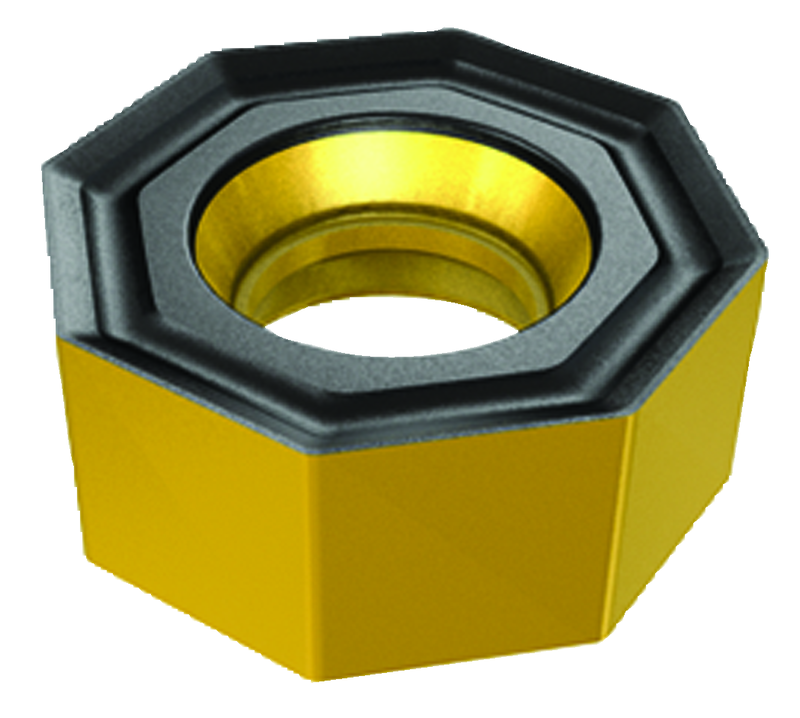

Iscar EH5606285 ONHU 0505AN-N-W IC810
SKU: FTS-EH5606285
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606285 ONHU 0505AN-N-W IC810Full Description
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.0787" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.193" | Tool Type | Double sided Inserts |
| Insert Included Angle (EPSR) | 135 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0059 "/tooth |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
| Shape | 135° Octagon |
Family Description
Double-sided octagonal wiper inserts with 4 or 8 cutting edges (HELIDO 845 line).
To be used with ONMU/ONHU 05 inserts.
