Brand: Iscar

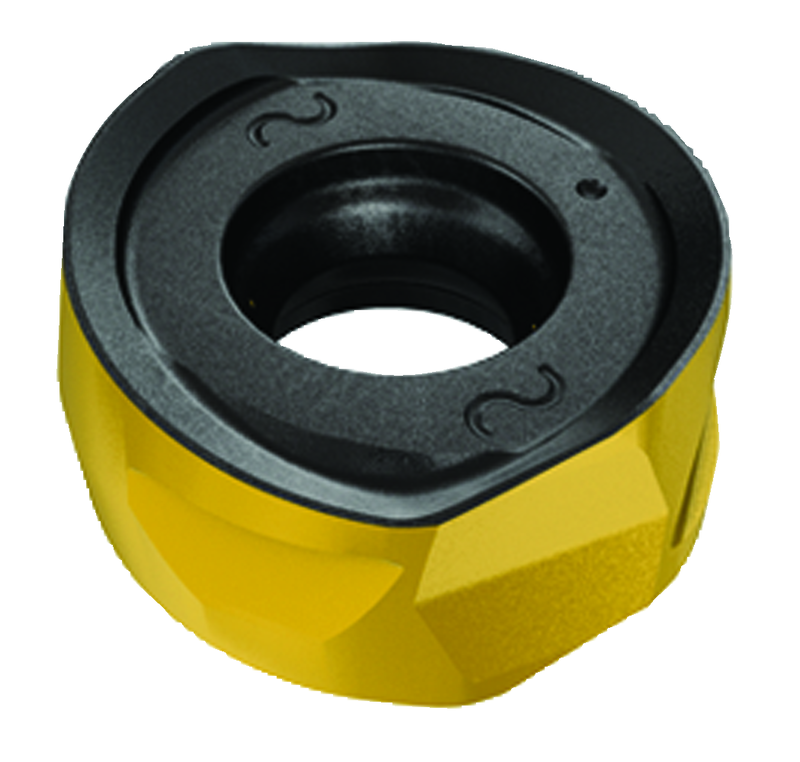

Iscar EH5606450 H400 RNHU 1205-ML IC830
SKU: FTS-EH5606450
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606450 H400 RNHU 1205-ML IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Insert Length (INSL) | 0.433" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362" | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.343" | Minimum Feed per Tooth (fz(min)) | 0.0059 "/tooth |
| Insert Width (W1) | 0.441" | Measurement Type | Inch |
| Insert Thickness (S) | 0.187" | Body Material | Carbide |
| Coating | AlTiN+TiN |
Family Description
Double-sided inserts with four cutting edges for profile milling applications. Available are three different insert configurations for machining different materials and applications (HELIDO ROUND H400 LINE).
