Brand: Iscar

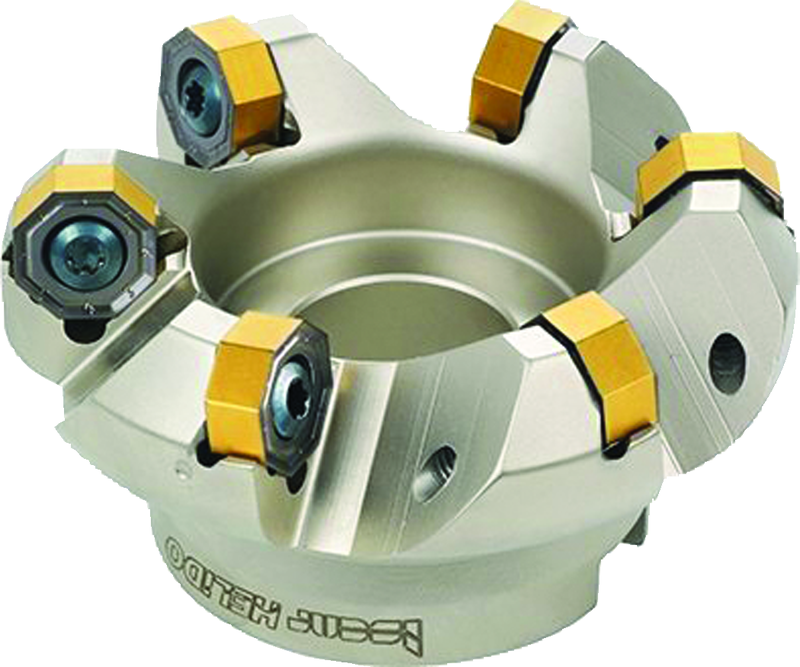

Iscar EH3104591 SOF45 8/16-D4.0-08-1.25R

SKU: FTS-EH3104591
MPN: 3104591

$1,289.19
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 3104591 SOF45 8/16-D4.0-08-1.25R

Full Description

Cutting Diameter (DC/DCX)	4.315"	Master Insert Identification (MIID)	ONHU 050500-PL
Cutting Diameter (DC)	4"	Coolant Supply Property (CSP)	External
Cutting Diameter Maximum (DCX)	4.315"	Body Material	Steel
Cutting Item Count (CICT)	8	Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	0.114"	Application	\| Facing \| Profiling \| Rampdown \| Slanted Shoulder & Chamfer \|
Connection Diameter Machine Side (DCONMS)	1-1/4"	Measurement Type	Inch
Overall Length (OAL)	1.48"	Tool Cutting Edge Angle (KAPR)	45 Degrees
Hub Diameter (DHUB)	2.68"	Tool Type	45° Facemills
Arbor Style	B

Family Description

Multifunction Face Mills for Octagonal, Square and Round Insert Shapes with Various Entry Angles.

1- with ONMU 0505... insert 2- with S845 SNMU 1305... insert 3- with RXMT 1607N insert 4- with OXMT 0507R08-FF insert 5- with OXMT 050705-R-HP insert Use only Torx Plus keys For adaptation, click on "More Info"
