Brand: Iscar
Iscar EH3105311 SOE45 8/16-D1.5-04-W1.25R
SKU: FTS-EH3105311
MPN:

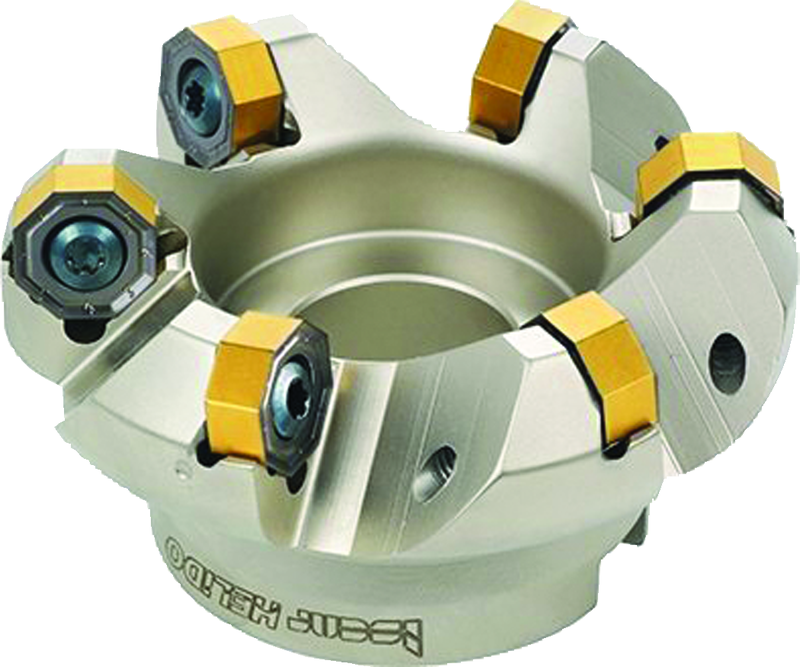

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105311 SOE45 8/16-D1.5-04-W1.25RFull Description
| Cutting Diameter (DC/DCX) | 1.909" | Weight of Item (WT) | 1.54 Lbs |
| Cutting Diameter (DC) | 1.407" | Head Length (LH) | 4.547" |
| Cutting Diameter Maximum (DCX) | 1.909" | Functional Length (LF) | 3.359" |
| Cutting Item Count (CICT) | 4 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.114" | Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 4.551" | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Diameter | 1.317" |
| Ramping Angle Maximum (RMPX) | 3.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Body Material | Steel |
| Master Insert Identification (MIID) | ONHU 050505-TN | Connection Code Machine Side (CCMS) | Weldon |
Family Description
Multifunctional endmills for octagonal, square and round insert contours with various entry angles.
A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with RXMT 1607N insert D- with OXMT 0507R08-FF insert E- with OXMT 050705-R-HP insert Use only Torx Plus keys
