Brand: Iscar

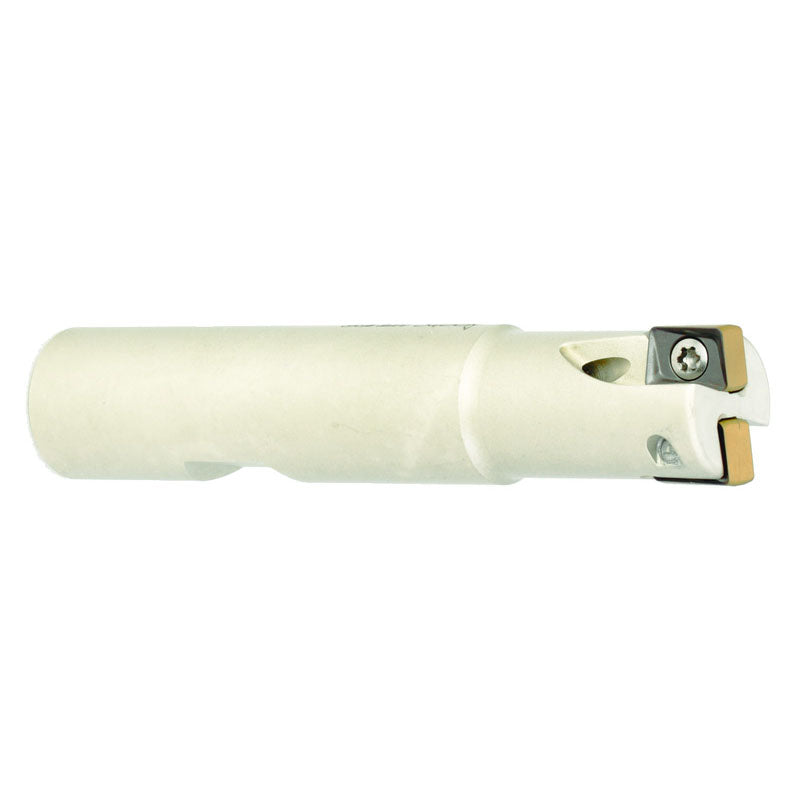

Iscar EH3105518 H490 SMD3.0-1.8-4-1.25-17
SKU: FTS-EH3105518
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105518 H490 SMD3.0-1.8-4-1.25-17Full Description
| Application | | Shouldering | | Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Item Count (CICT) | 12 | Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 1.83" | Arbor Style | A |
| Cutting Diameter (DC) | 3" | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2.86" | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Overall Length (OAL) | 2.76" | Tool Type | 90° Extended flute shell mill |
| Cutting Length | 1.83" |
Family Description
Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE).
ae(max)=0.25xD for regular inserts, ae(max)=0.35xD for -CS (chip splitting) inserts. Inserts with corner radii larger than .031" should only be used on the face of the cutter.
