Brand: Iscar

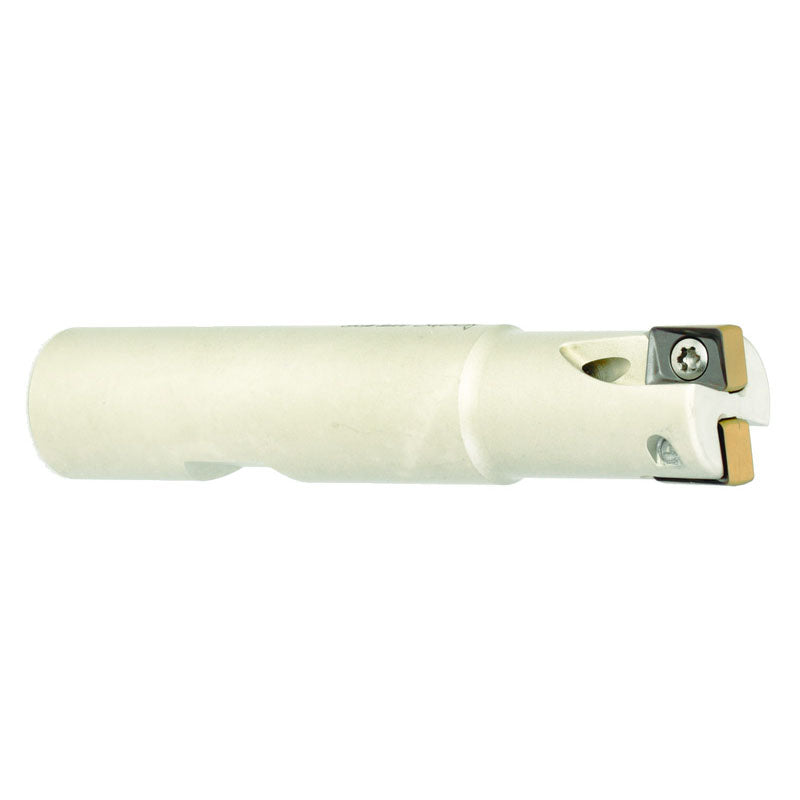

Iscar EH3104766 H490 E90AXD1.25-3W1.25-12
SKU: FTS-EH3104766
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3104766 H490 E90AXD1.25-3W1.25-12Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Head Length (LH) | 1-1/2" |
| Cutting Diameter (DC) | 1-1/4" | Functional Length (LF) | 3.109" |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.472" | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 4-1/4" | Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Body Material | Steel |
| Master Insert Identification (MIID) | H490 ANKX 1205PNTR-RM | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.26 Lbs |
Family Description
90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line).
For adaptation, click on "More Info".
