Brand: Iscar

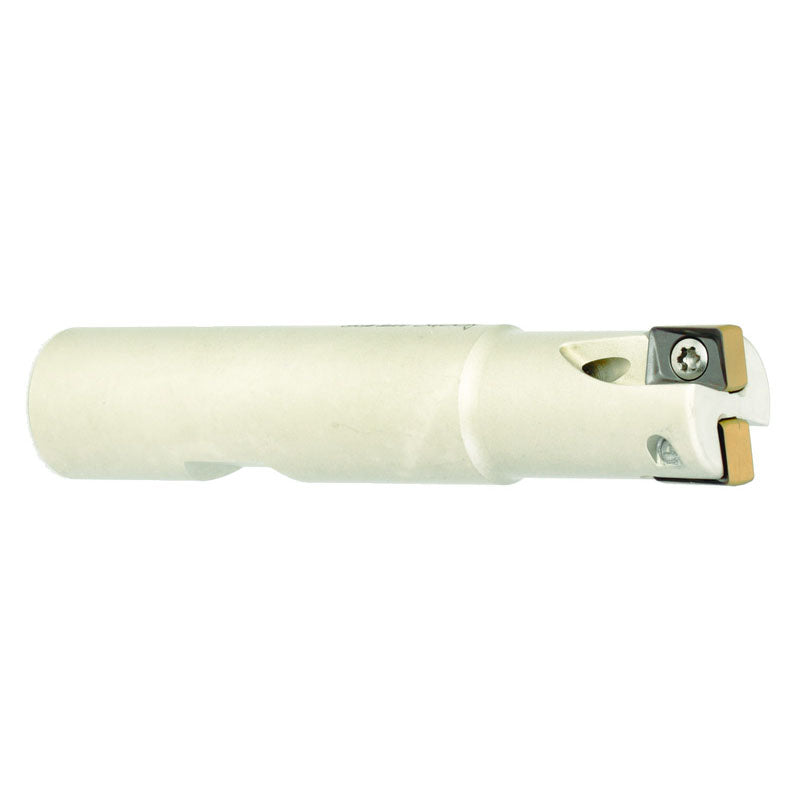

Iscar EH3105890 H490 E90AX D.75-2-W.75-09
SKU: FTS-EH3105890
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105890 H490 E90AX D.75-2-W.75-09Full Description
| Cutting Diameter (DC/DCX) | 3/4" | Head Length (LH) | 1" |
| Cutting Diameter (DC) | 3/4" | Functional Length (LF) | 2.364" |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.315" | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3.38" | Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Measurement Type | Inch |
| Master Insert Identification (MIID) | H490 ANKX 0904 | Body Material | Steel |
| Weight of Item (WT) | 0.34 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Family Description
90° endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications.
For adaptation, click on "More Info" "B" Suffix cylindrical shank which may be shortened
