Brand: Iscar

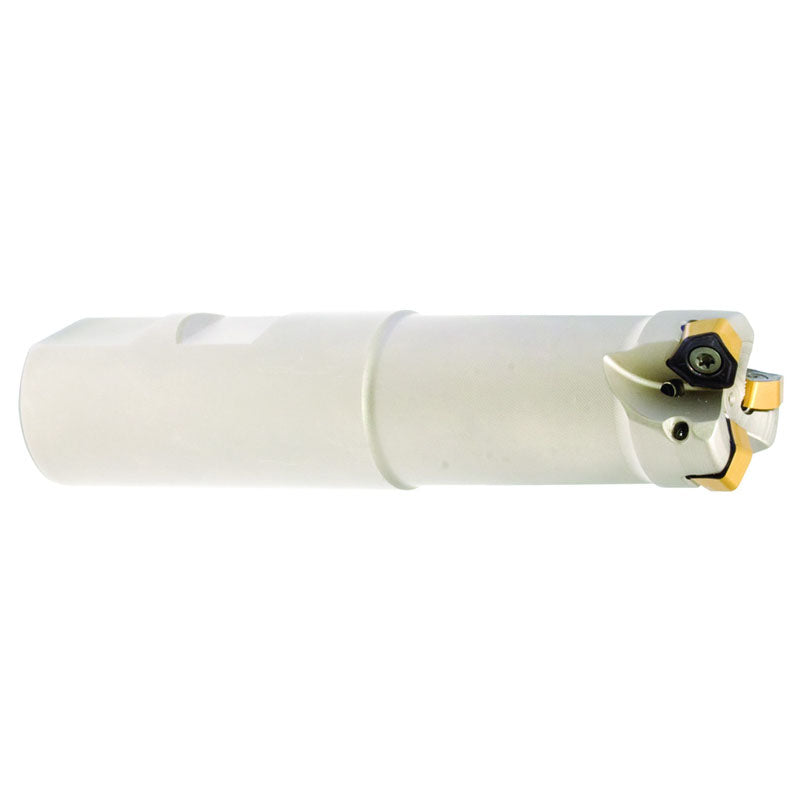

Iscar EH3105952 H400 ERD1.25-4-2.5W125-12
SKU: FTS-EH3105952
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105952 H400 ERD1.25-4-2.5W125-12Full Description
| Cutting Diameter (DC/DCX) | 1-1/4" | Weight of Item (WT) | 1.22 Lbs |
| Cutting Diameter (DC) | 0.777" | Head Length (LH) | 2-1/2" |
| Cutting Diameter Maximum (DCX) | 1-1/4" | Functional Length (LF) | 3.584" |
| Cutting Item Count (CICT) | 4 | Tool Type | Round corner cutters |
| Depth of Cut Maximum (APMX) | 0.34" | Body Diameter (BD) | 1.118" |
| Overall Length (OAL) | 4.725" | Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.6 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | H400 RNHU 1205-AX |
Family Description
Endmills carrying double-sided inserts with four .236" radius cutting edges (HELIDO ROUND H400 LINE).
For adaptation, click on "More Info".
