Brand: Iscar

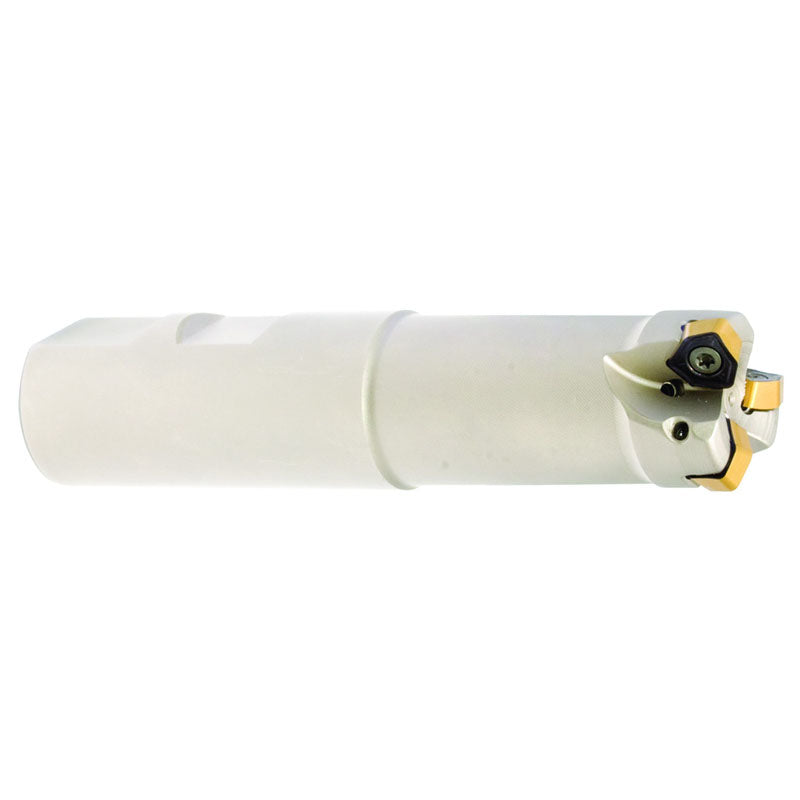

Iscar EH3105554 FF EWXD1.50-5-4.0W1.25-05
SKU: FTS-EH3105554
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105554 FF EWXD1.50-5-4.0W1.25-05Full Description
| Cutting Diameter (DC/DCX) | 1-1/2" | Functional Length (LF) | 5.309" |
| Cutting Diameter (DC) | 1.11" | Tool Type | Fast Feed Endmill |
| Cutting Diameter Maximum (DCX) | 1-1/2" | Usable Length (LU) | 4" |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Depth of Cut Maximum (APMX) | 0.043" | Torque (TQ) | 17.7 lbfxin |
| Overall Length (OAL) | 6.45" | Body Diameter (BD) | 1.328" |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Through Hole |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Measurement Type | Inch |
| Master Insert Identification (MIID) | H600 WXCU 05T312T | Body Material | Steel |
| Weight of Item (WT) | 2.06 Lbs | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 4.12" |
Family Description
HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges.
For machining recommendations, radius for programming and adaptation click on "More Info" To generate a straight surface without cusps, the width of cut must not exceed DC
