Brand: Iscar

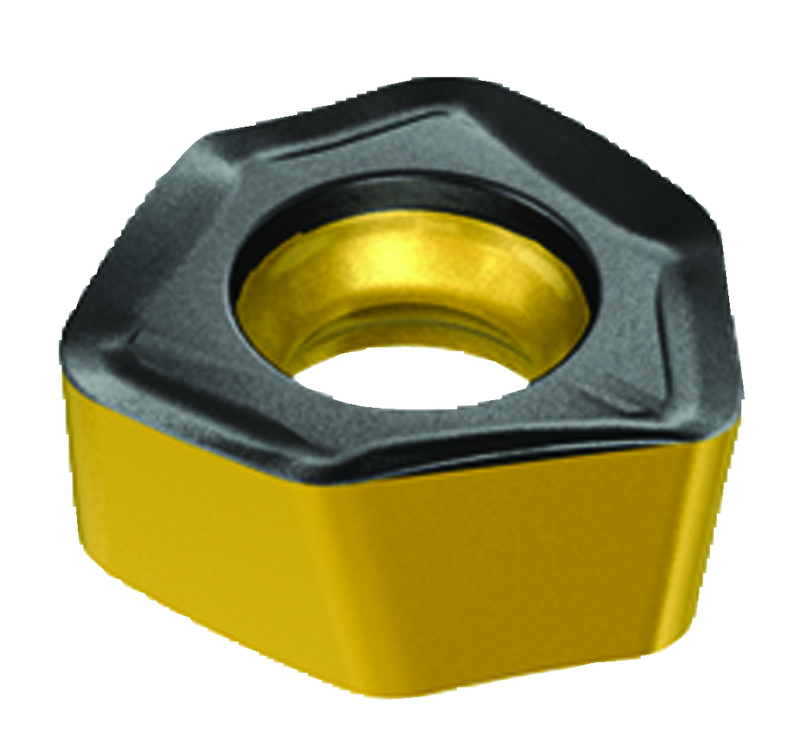

Iscar EH5606381 H600 WXCU 040310HP IC830
SKU: FTS-EH5606381
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606381 H600 WXCU 040310HP IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Maximum Feed per Tooth (fz(max)) | 0.0268 "/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.163" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0378" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.122" | Minimum Feed per Tooth (fz(min)) | 0.0134 "/tooth |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 80° Trigon |
Family Description
Double-sided inserts with 6 cutting edges for fast feed machining
For recommended machining data click on "More Info"
