Brand: Iscar

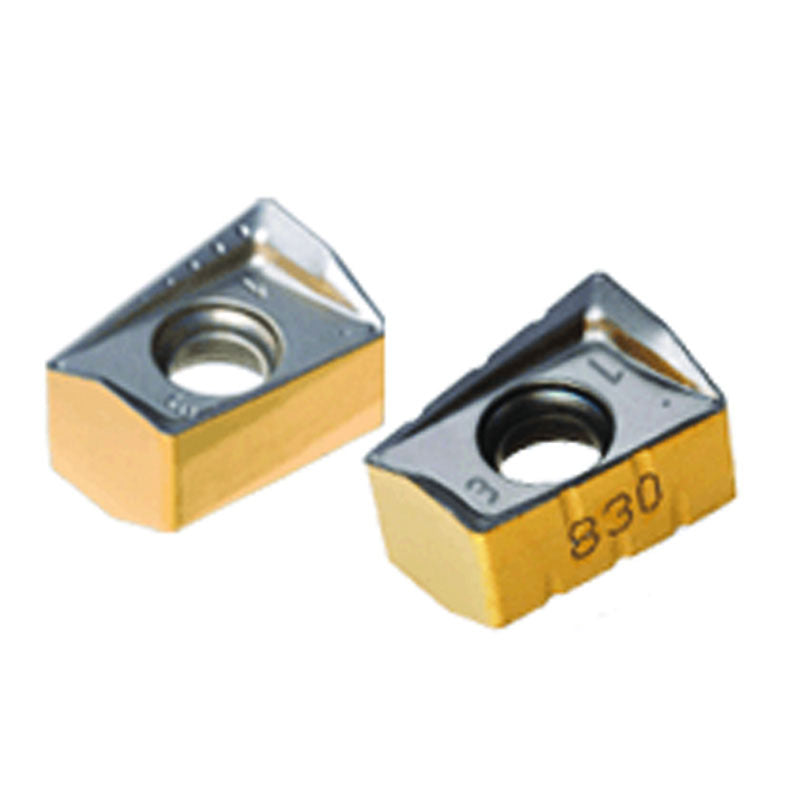

Iscar EH5605989 H490 ANKX 1706R15T-FF IC830
SKU: FTS-EH5605989
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5605989 H490 ANKX 1706R15T-FF IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Rampdown | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.661" | Maximum Feed per Tooth (fz(max)) | 0.0787 "/tooth |
| Insert Length (INSL) | 0.661" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063" | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.079" | Minimum Feed per Tooth (fz(min)) | 0.0394 "/tooth |
| Insert Width (W1) | 0.461" | Measurement Type | Inch |
| Insert Thickness (S) | 0.307" | Body Material | Carbide |
| Coating | AlTiN+TiN |
Family Description
HELIDO, single-sided rectangular inserts with 2 helical cutting edges. Very strong construction. Used for very high feed milling at small depths of cut.
The cutting diameter of the tool is .06" larger than the nominal diameter when using this insert No tool radius modifications is required At D.O.C. larger than APMX, regular insert feed should be applied.
