Brand: Iscar

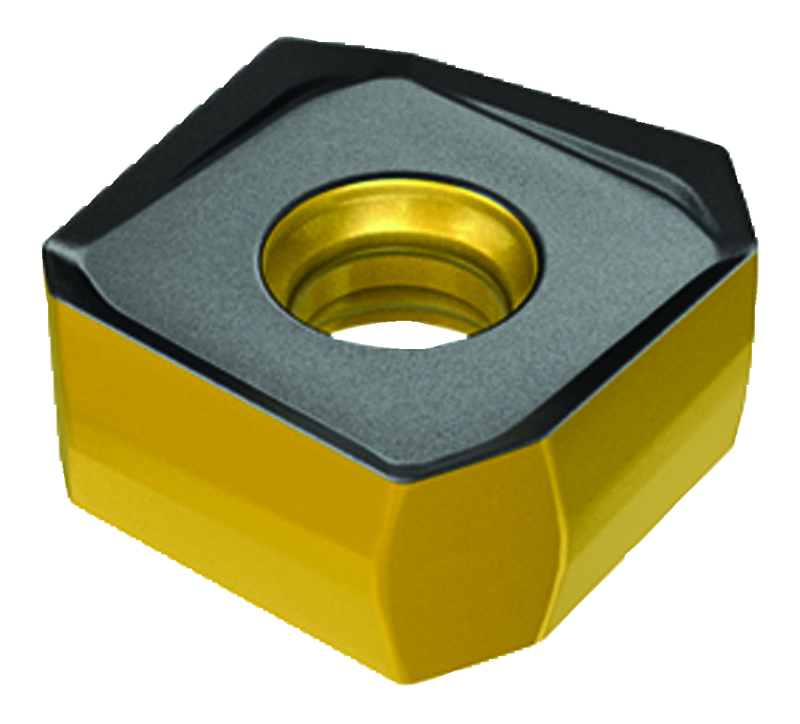

Iscar EH5606639 S890 SNMU 1305PNTR IC810
SKU: FTS-EH5606639
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606639 S890 SNMU 1305PNTR IC810Full Description
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Application | | Facing | Milling Inserts | Shouldering | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354" | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.512" | Minimum Feed per Tooth (fz(min)) | 0.0039 "/tooth |
| Insert Thickness (S) | 0.22" | Cutting Edge Effective Length (LE) | 0.354" |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
| Shape | 90° Square |
Family Description
Double-sided square inserts with 8 cutting edges. Used on 88° face mills (HELIDO 890 line).
