Brand: Iscar

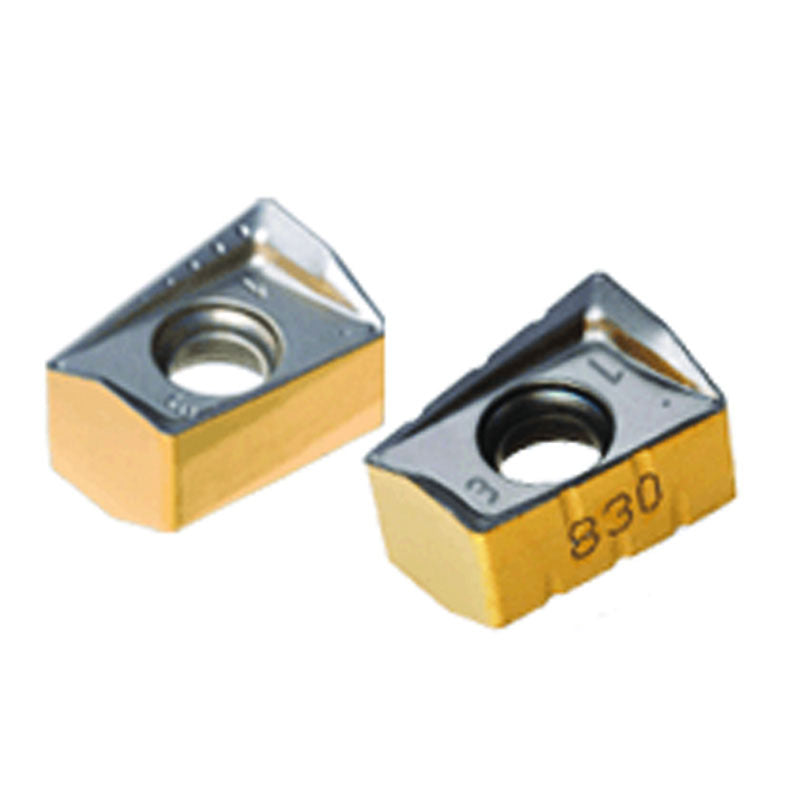

Iscar EH5606009 H490 ANKX 120516PNTR IC830
SKU: FTS-EH5606009
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606009 H490 ANKX 120516PNTR IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Side Plunging | Slotting | | Shape | 85° Parallelogram |
| Insert Length (INSL) | 0.539" | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Corner Radius (RE) | 0.063" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.433" | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.394" | Minimum Feed per Tooth (fz(min)) | 0.0039 "/tooth |
| Insert Thickness (S) | 0.339" | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN+TiN |
Family Description
Double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 line).
ANKX-utility inserts, ANCX-precision inserts.
