Brand: Iscar

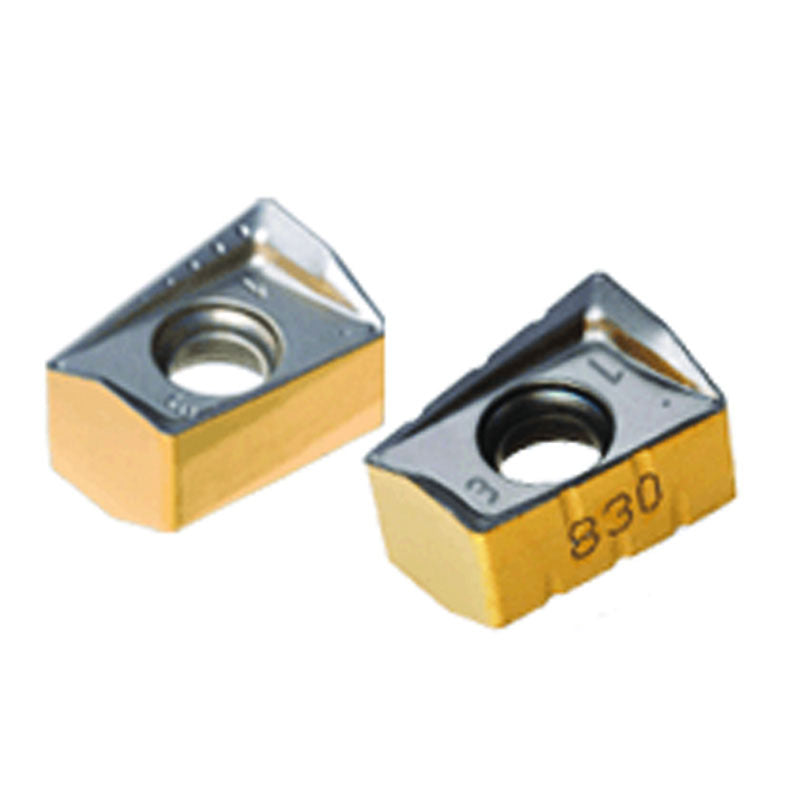

Iscar EH5606016 H490 ANCX 1205R15T-FF IC830
SKU: FTS-EH5606016
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606016 H490 ANCX 1205R15T-FF IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Rampdown | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.531" | Maximum Feed per Tooth (fz(max)) | 0.0787 "/tooth |
| Insert Length (INSL) | 0.531" | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.059" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079" | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.402" | Minimum Feed per Tooth (fz(min)) | 0.0394 "/tooth |
| Insert Thickness (S) | 0.252" | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Family Description
HELIDO, single-sided rectangular inserts, with 2 helical cutting edges. Very strong construction, for fast feed milling at small depths of cut.
The cutting diameter of the tool is .02" larger than the nominal diameter when using this insert. Tool corner should be modified by rounding to R.08" At D.O.C. larger than APMX, regular insert feed should be applied. For insert mounting Click on "More Info".
