Brand: Iscar

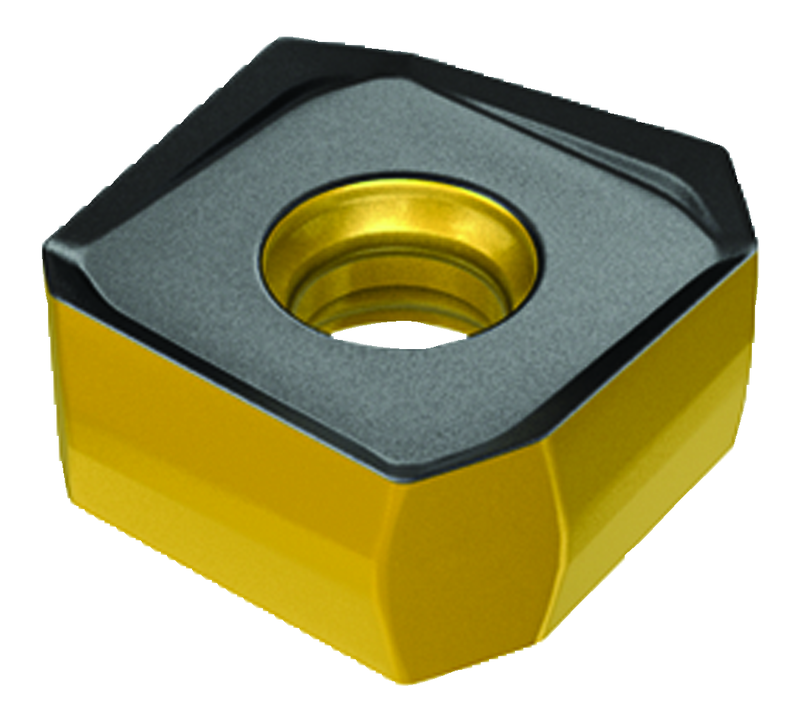

Iscar EH5605949 S845 SXHU 1606AD-R-W IC808
SKU: FTS-EH5605949
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5605949 S845 SXHU 1606AD-R-W IC808Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Maximum Feed per Tooth (fz(max)) | 0.0138 "/tooth |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.254" | Tool Type | Double sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0079 "/tooth |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Family Description
HELIDO wiper insert with a single cutting edge.
When a wiper insert is being used, recommended ap=.0315-.118 inch, fz=.0039-.0098 inch/t.
