Brand: Iscar

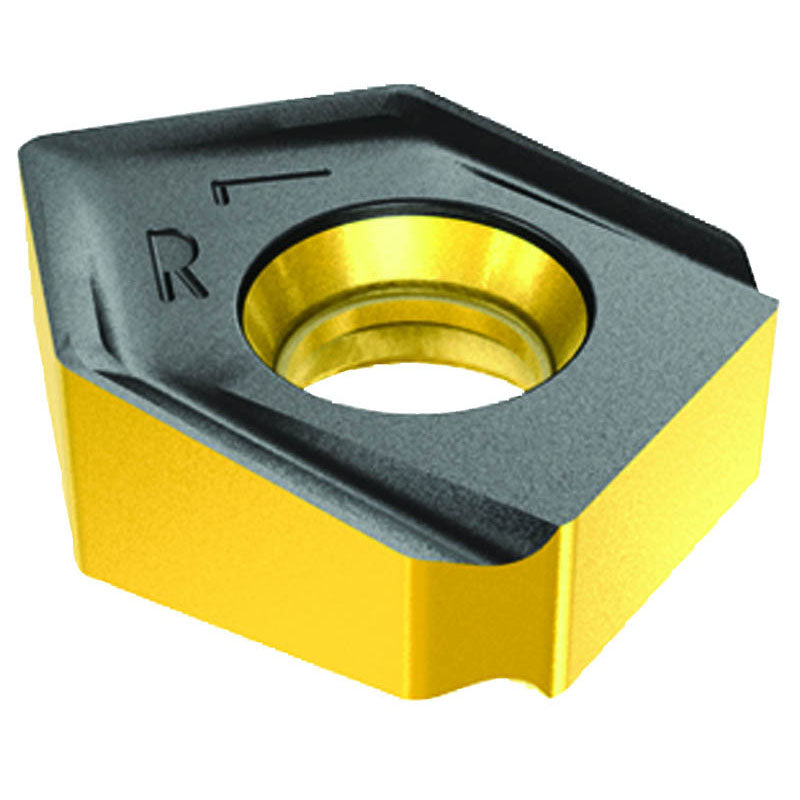

Iscar EH5606297 S845 SNHU 1305ANR-MM IC830
SKU: FTS-EH5606297
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606297 S845 SNHU 1305ANR-MM IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Slanted Shoulder & Chamfer | | Shape | 90° Square |
| Corner Radius (RE) | 0.0315" | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Depth of Cut Maximum (APMX) | 0.236" | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.244" | Minimum Feed per Tooth (fz(min)) | 0.0059 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Family Description
Double-sided square inserts with 8 cutting edges (HELIDO 845 line).
S845 SNHU - Precision ground S845 SNMU - Utility
