Brand: Iscar

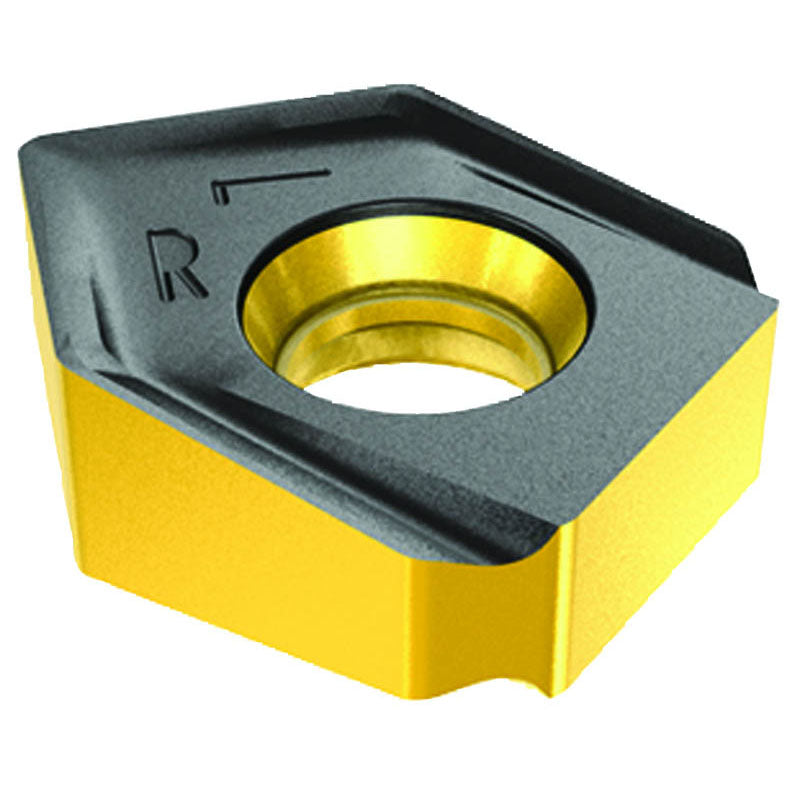

Iscar EH5606300 S845 SNHU 1305AN-N-W IC808
SKU: FTS-EH5606300
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606300 S845 SNHU 1305AN-N-W IC808Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Cutting Direction (HAND) | Right / Left |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.232" | Tool Type | Double sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0039 "/tooth |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
Family Description
Double-sided wiper inserts with 4 cutting edgese (HELIDO 845 line).
When a wiper insert is being used, recommended ap=.315-.118",fz=.0039-.0079 IPT. To be used with S845 SNMU/SNHU 13.. inserts.
