Brand: Iscar

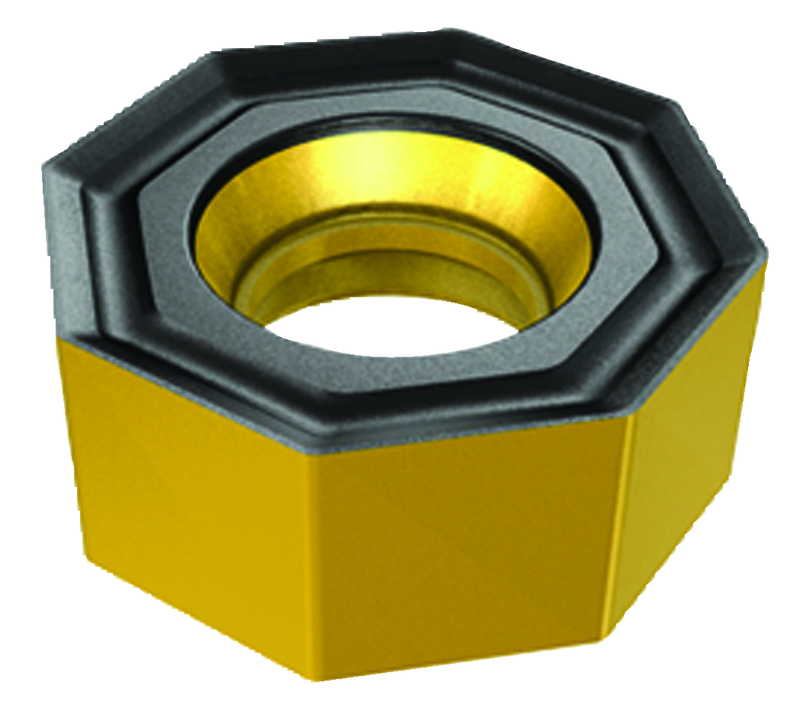

Iscar EH5606674 ONMU 050505-TN-MM IC5400
SKU: FTS-EH5606674
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606674 ONMU 050505-TN-MM IC5400Full Description
| Applicable Material | | Steel | Stainless Steel | | Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Corner Radius (RE) | 0.0197" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.138" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2" | Minimum Feed per Tooth (fz(min)) | 0.0079 "/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC5400 |
Family Description
Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line).
ONHU - Precision ground ONMU - Utility
