Brand: Iscar

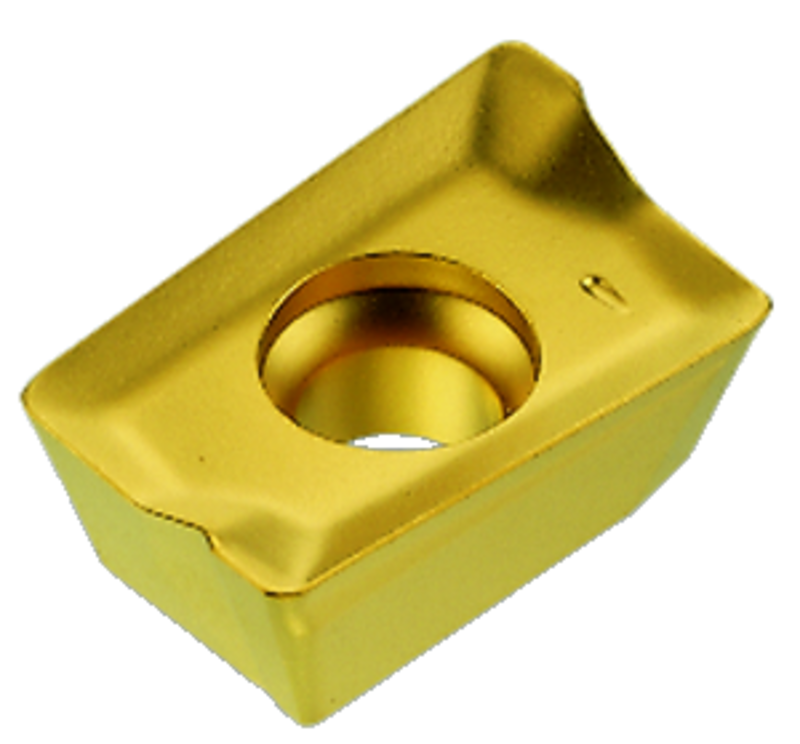

Iscar EH5607685 H606 RXCU 43-AXT IC830
SKU: FTS-EH5607685
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5607685 H606 RXCU 43-AXT IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Maximum Feed per Tooth (fz(max)) | 0.016 "/tooth |
| Application | | Facing | Helical Interpolation | Milling Inserts | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1/4" | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.51" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.236" | Minimum Feed per Tooth (fz(min)) | 0.004 "/tooth |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | Round |
Family Description
Double-sided inserts with six .250" radius edges, for profile milling.
