Brand: Iscar

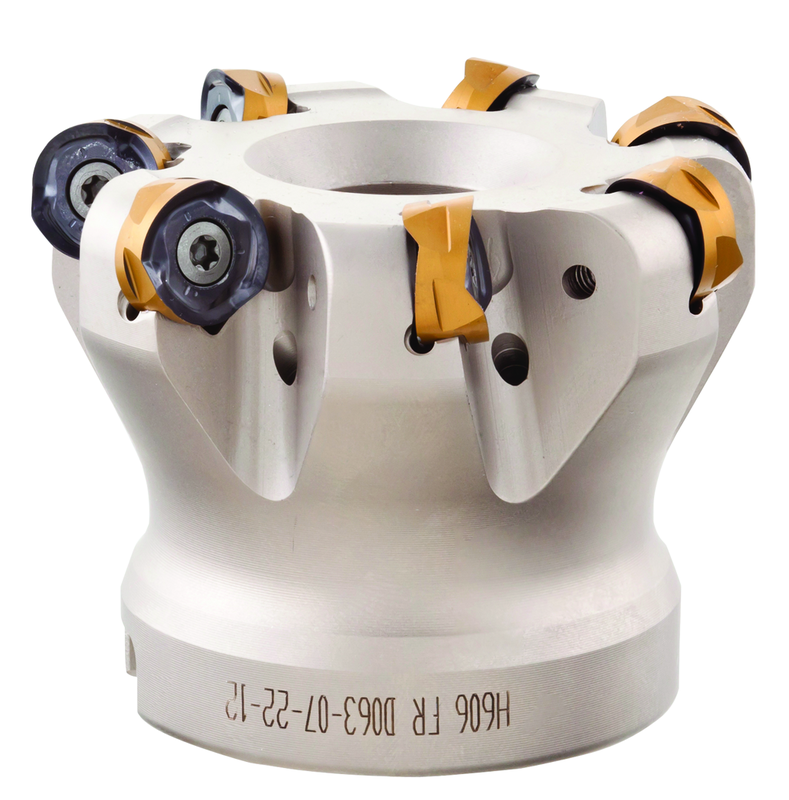

Iscar EH3106102 H606 FR D063-07-22-12
SKU: FTS-EH3106102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3106102 H606 FR D063-07-22-12Full Description
| Cutting Diameter (DC/DCX) | 63 mm | Arbor Style | A |
| Cutting Diameter (DC) | 51 mm | Master Insert Identification (MIID) | H606 RXCU 1206-AXMP |
| Cutting Diameter Maximum (DCX) | 63 mm | Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Type | Round corner cutters |
Family Description
Face mills carrying double-sided round inserts with six cutting edges.
