Brand: Parlec

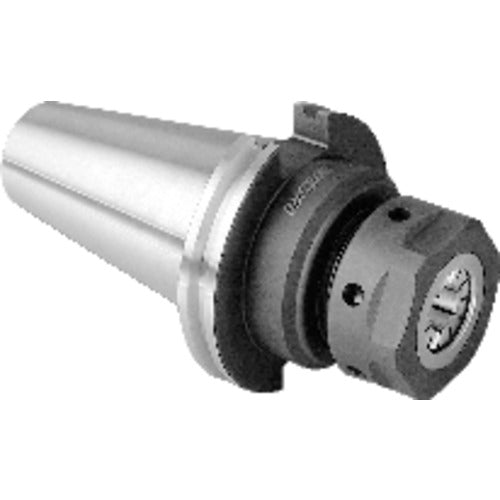

Parlec GM96C5010SC4 V-Flange Collet Chuck - CAT50 SH, 3.5" Projection
SKU: FTS-GM96C5010SC4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Parlec C50-10SC4 V-Flange Collet Chuck - CAT50 SH, 3.5" ProjectionFull Description
| Shank Size (SS) | CAT50 | Tool Type | Collet Chucks |
| Connection Size (CSI) | TG100 | Style | TG100 |
| Body Diameter (BD) | 2.440" | Nose Length | 2.44" |
| Protruding Length (LPR) | 3-1/2" |
• Constructed of alloy steel for long, durable service life • Hardened to RC 52–56 to avoid damaging collet chuck threads • Shiny taper with black oxide finish for the best combination of accuracy and durability • Collet seat taper T.I.R. .0002 • Collet face within .06 of nut face for maximum rigidity. • Collet can be removed with single hand. No tooling required and improved collet life • Precision ball bearing type collet races provide higher clamping forces • Through-spindle coolant capability • Parsymmetry design for high-speed operation • Plastic bumper protects spindle and holder during tool changes. Available on NMTB 40 and 50 tapers only. • Flange-entry coolant is the same as DIN Form B. Other sizes available on request
