Brand: Generic USA

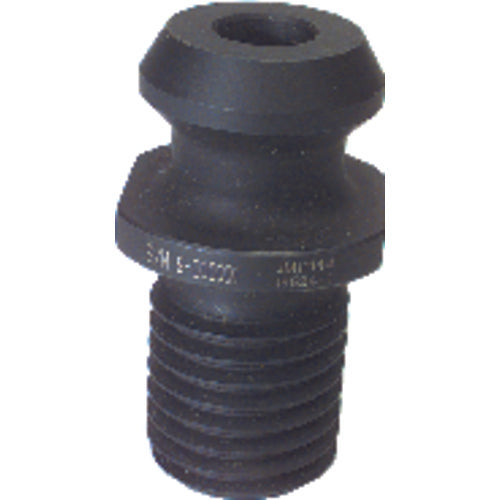

Generic USA GM8531113DHTHS Style B M16X2.0 Retention Knob 45 Deg BT40
SKU: FTS-GM8531113DHTHS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Generic USA GM8531113DHTHS Style B M16X2.0 Retention Knob 45 Deg BT40Full Description
| Type | Retention Knob | Hole | .1570" |
| Compatible With | Milling Machines | Dimension L1 | 1.1000" |
| Spindle Taper | BT40 | Dimension L2 | 1.3760" |
| Style | B | Knob Diameter | .5890" |
| TPI | M16 x 2.0 | Shoulder | .9230" |
| Angle | 45 | Flange | .2340" |
Remarks
• High Torque (HT) and High Torque High Strength (HTHS0 retention knobs will increase production 10 to 40%, reduce set-up times, reduce polishing times, increase spindle life, improve finishes and increase tool life• HT knobs are manufactured from AISI 8620H material• HS and HTSHS knobs are made from AISI 9310H• HT and HTHS knobs will fit any toolholder made to industry standards• HT and HTHS retentionknbos should be installed according to the manufacturer's torque chart provided with each knob using a retention knob socket and torque wrench• Marked with serieal numbers
