Brand: Iscar

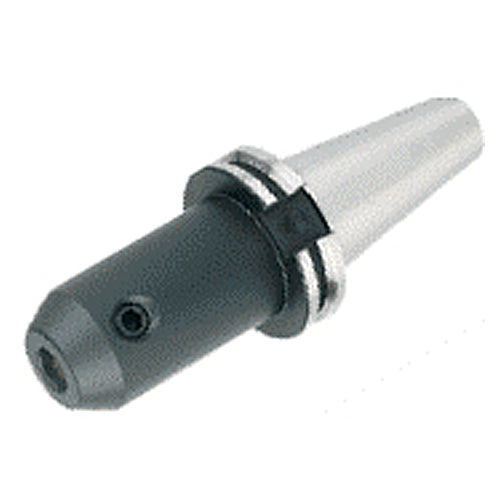

Iscar GM60314210 CAT40 EM 5/8X1.750
SKU: FTS-GM60314210
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar GM60314210 CAT40 EM 5/8X1.750Full Description
| Connection Diameter Workpiece Side (DCONWS) | 5/8" | Measurement Type | Inch |
| Body Diameter (BD) | 1-1/2" | Shank Size (SS) | 40 |
| Protruding Length (LPR) | 1-3/4" | Tool Type | DIN 69871 |
| Overall Length (OAL) | 4.437" | Body Material | Steel |
Weldon endmill holders with Caterpillar form ADB tapered shanks.
Remarks
B is the designation for coolant through flange.
