Brand: Briney

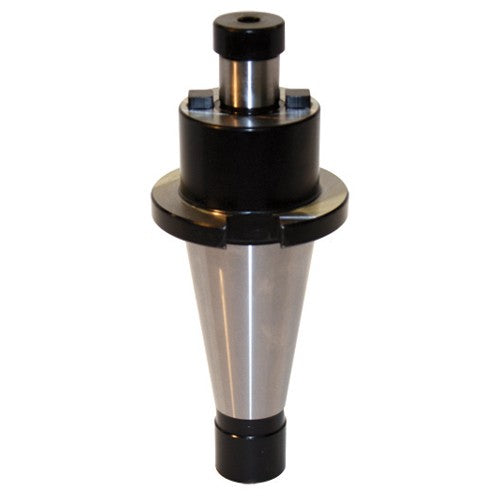

Briney GM30NMTB40SM100 NMTB40SM-100-150 NMTB40 Shell Mill Adapter, 1" Pilotx1.50" Projection
SKU: FTS-GM30NMTB40SM100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Briney GM30NMTB40SM100 NMTB40SM-100-150 NMTB40 Shell Mill Adapter, 1" Pilotx1.50" ProjectionFull Description
| Connection Diameter Machine Side (DCONMS) | #40 | Arbor Thread Size | 1/2"-20 UNF-2B |
| Connection Diameter Workpiece Side (DCONWS) | 1" | Pilot Length | 0.688" |
| Body Length (LB) | 1-1/2" | Shell Mill Pilot Size | 1" |
| Body Diameter (BD) | 2.19" | Flange Diameter (DF) | 2-1/2" |
| Overall Length (OAL) | 5.876" | Body Length_2 | 1.798" |
| Shank Type | NMTB | Protruding Length (LPR) | 1.500" |
| Thread Size | 5/8"-11 UNC-2B |
