Brand: Iscar

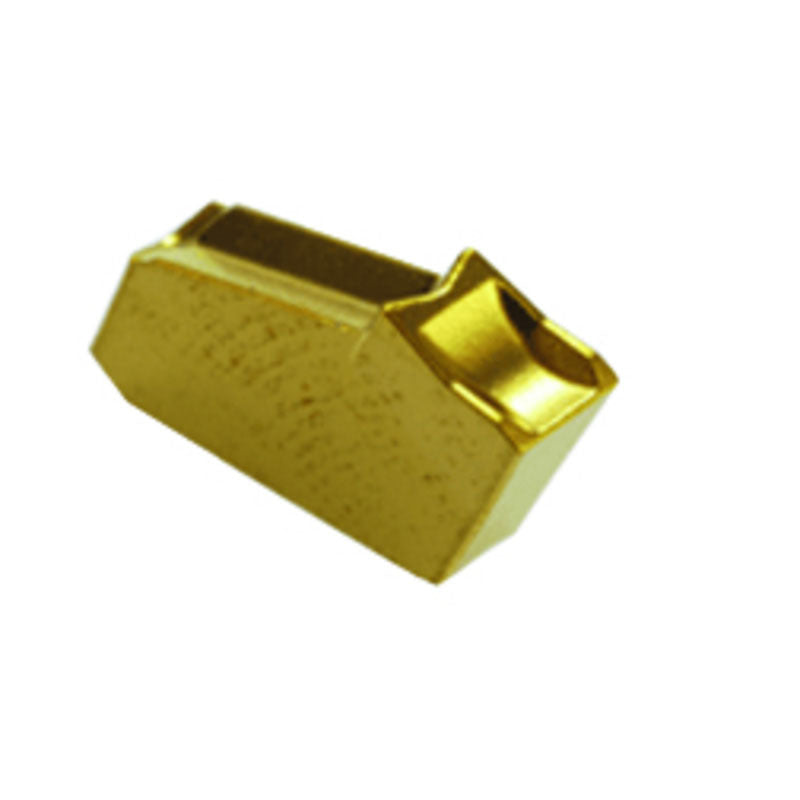

Iscar EH6401298 GIPI 3.00E-0.40 IC20
SKU: FTS-EH6401298
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6401298 GIPI 3.00E-0.40 IC20Full Description
| Cutting Width (CW) | 0.118" | Grade | IC20 |
| Corner Radius (RE) | 0.016" | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.61" | Application | | Int. Groove & Turn | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Clearance Angle Major (AN) | 8 Degrees | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Insert Length (INSL) | 0.618" | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 0.787" | Measurement Type | Inch |
| Feed | 0.0071 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Body Material | Carbide |
Family Description
Precision inserts for Internal turning and grooving. Double-ended, P-type chipformer, medium feeds, min. bore .787".
DMIN for internal applications = .787"
