Brand: Iscar

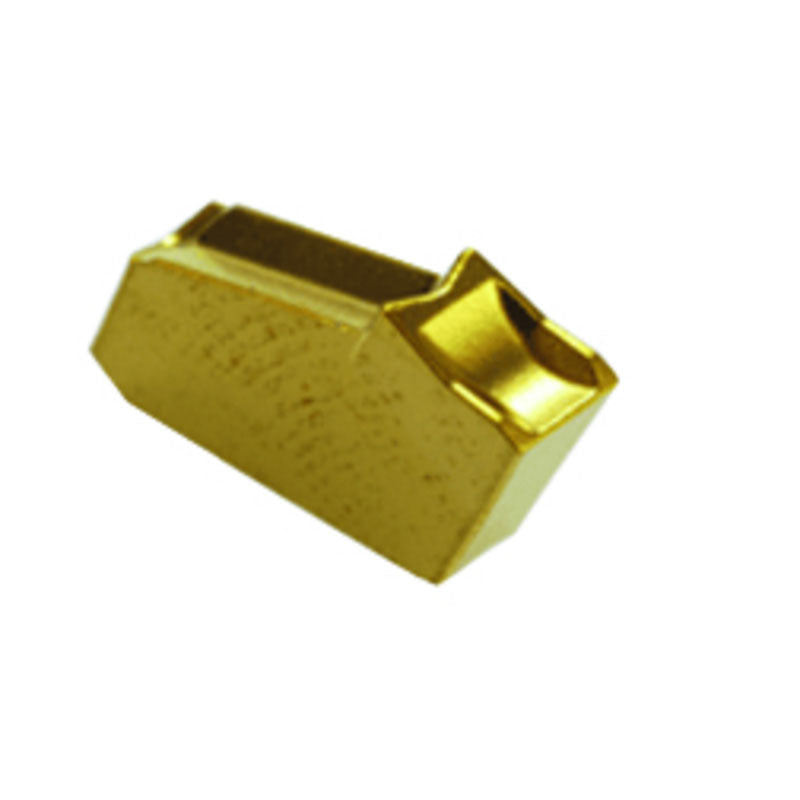

Iscar EH6401204 GIPI 1.57-0.15 IC20
SKU: FTS-EH6401204
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6401204 GIPI 1.57-0.15 IC20Full Description
| Cutting Width (CW) | 0.062" | Shape | 90° Rectangular |
| Corner Radius (RE) | 0.0059" | Application | | Int. Grooving (side limit) | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Overall Length (OAL) | 0.618" | Max. Grooving Feed (fg(max)) | 0.002 "/rev |
| Insert Length (INSL) | 0.618" | Min. Grooving Feed (fg(min)) | 0.0012 "/rev |
| Cutting Depth Maximum (CDX) | 0.098" | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Minimum Bore Diameter (DMIN) | 1.181" |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC20 | Body Material | Carbide |
Family Description
Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787".
The tool pocket should be modified DMIN for internal application=.787"
