Brand: Iscar

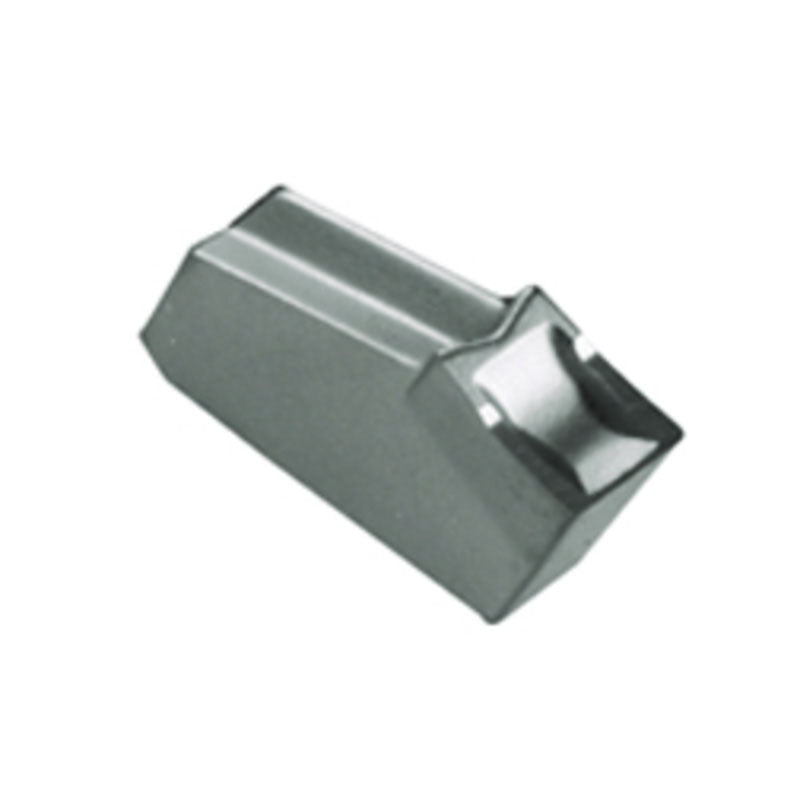

Iscar EH6400148 GIF 5.00E-0.40 IC20
SKU: FTS-EH6400148
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6400148 GIF 5.00E-0.40 IC20Full Description
| Cutting Width (CW) | 0.197" | Shape | 90° Rectangular |
| Corner Radius (RE) | 0.016" | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.512" | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Clearance Angle Major (AN) | 7 Degrees | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Insert Length (INSL) | 0.602" | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 2.756" | Axial Groove Outside Diameter Minimum (DAXN) | 6.3" |
| Feed | 0.0118 inch/rev | Measurement Type | Inch |
| Coating | Uncoated | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC20 | Body Material | Carbide |
Family Description
CUT-GRIP, precision, double-ended inserts for grooving and turning at low to-medium feeds.
DMIN for internal machining = 2.76"
