Brand: Nikcole

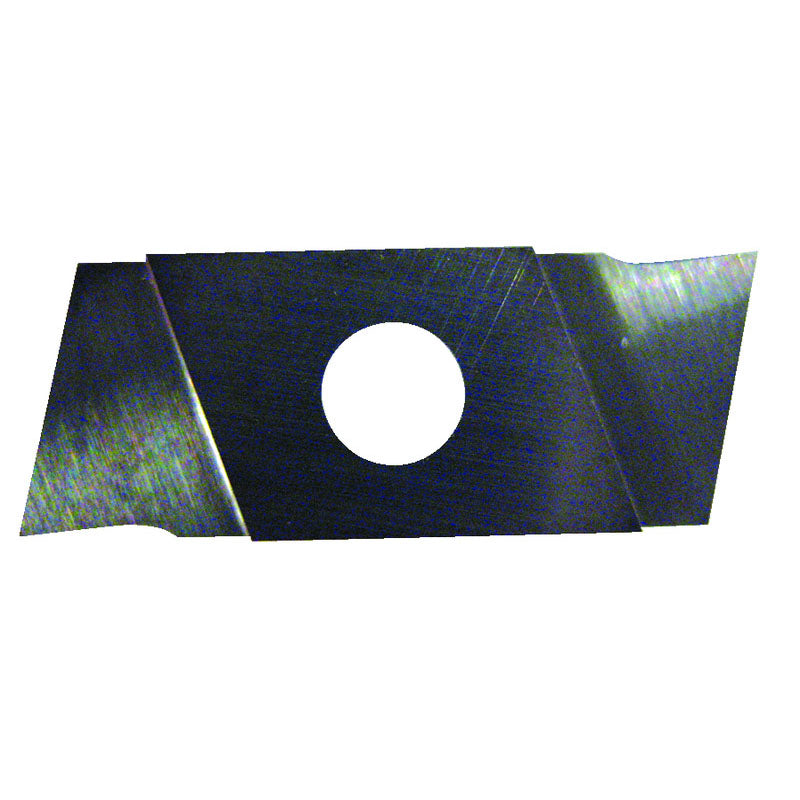

Nikcole FG4040080 GIE-7-GP-1.0 L-R Grade C2 - Cut-Off Insert
SKU: FTS-FG4040080
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Nikcole GP10LRC2 GIE-7-GP-1.0 L-R Grade C2 - Cut-Off InsertFull Description
| Cutting Width (CW) | 0.039" | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.235" | Applicable Material | Cast Iron|Non-Ferrous Metals |
| Cutting Edge Material | Carbide | Height | 0.275" |
| Grade | C2 | Tool Type | Cut-Off Insert |
• Grooving & Cut-Off Systems • is the only system that provides two cutting edges in one insert in extremely narrow widths. This system also features a full range of toolholders with minimum hardware only one positive locking insert screw and the unique insert pocket design assures a repeatable cutting edge location. Standard inserts are stocked in widths from .019 to .078 in uncoated and coated carbide grades. The Mini-System is a unique method of producing narrow grooves and providing an economical means of cut-off all in a wide variety of materials. • Carbide Grade ApplicationC2 Uncoated grade recommended for cast iron and non-ferrous materials. • C5-PV Coated grade recommended for machining steels, cutting solid bars to the center and for interrupted cuts. • C6-PV Coated grade recommended for machining steels, cutting off and grooving at higher speeds.
