Brand: Iscar

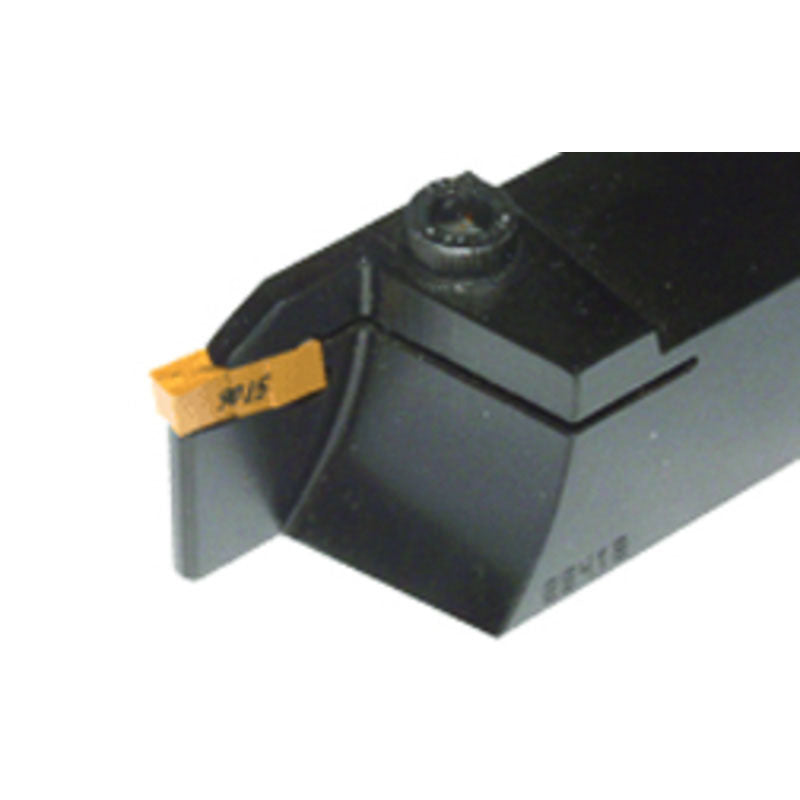

Iscar EH2800268 GHGR 25.4-4
SKU: FTS-EH2800268
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2800268 GHGR 25.4-4Full Description
| Cutting Width Minimum (CWN) | 0.15" | Overall Length (OAL) | 6" |
| Cutting Width Maximum (CWX) | 0.19" | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.79" | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1" | Body Material | Steel |
| Functional Width (WF) | 0.94" | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 1.4" | Measurement Type | Inch |
Family Description
External holders for deep grooving and parting
For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter Dmax For grooving a part with a diameter larger than CUTDIA, click on "More Info" For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on "More Info"More Info"
