Brand: Iscar

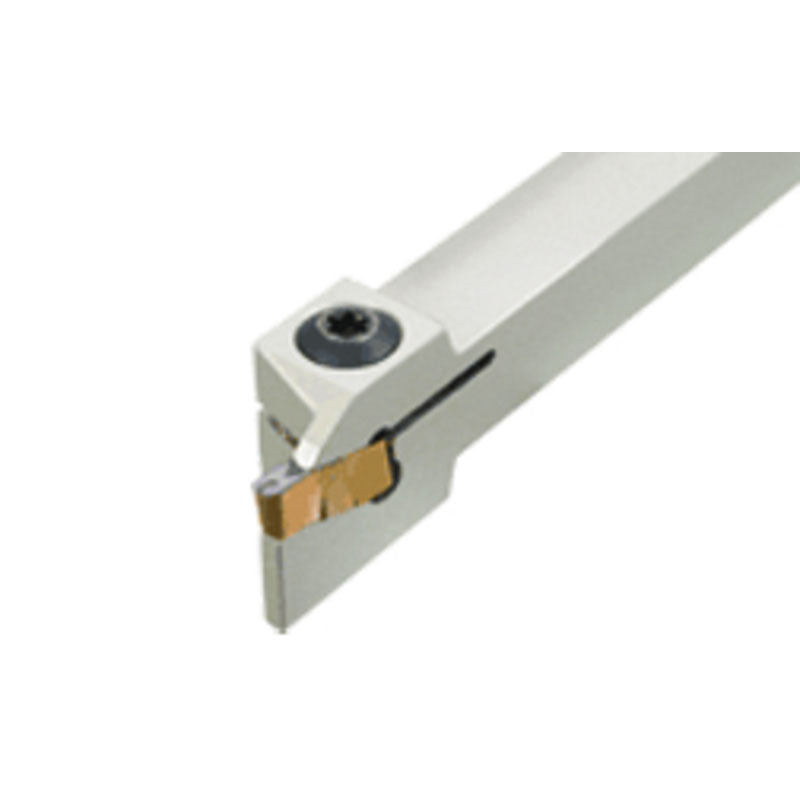

Iscar EH2800095 GHDL 25.4-3
SKU: FTS-EH2800095
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2800095 GHDL 25.4-3Full Description
| Cutting Width Minimum (CWN) | 0.11" | Overall Length (OAL) | 6" |
| Cutting Width Maximum (CWX) | 0.157" | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.36" | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1" | Body Material | Steel |
| Functional Width (WF) | 0.95" | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 1" | Measurement Type | Inch |
Family Description
External tools for turning, grooving and parting.
For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
